SAM-LS90F45-C90

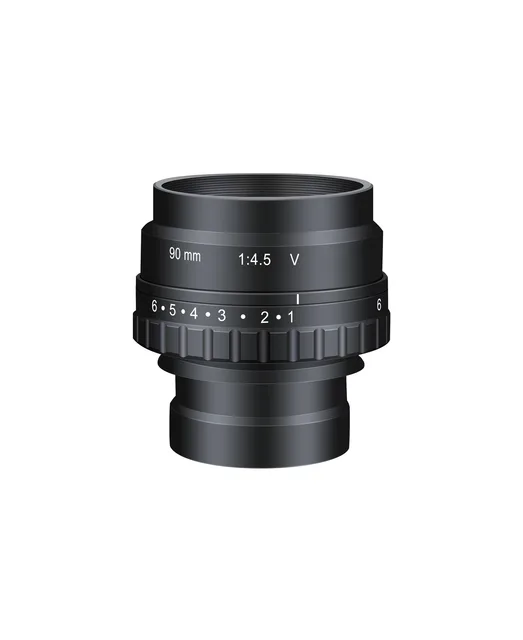

SAM-LS90F45-C90 — 90mm Line Scan Lens (90 mm image circle)
Large image circle optics for 4K, 8K and 16K line scan cameras.
90 mmFocal Length
40 lp/mmResolving Power
90 mmImage Circle
F4.5Aperture
M37 x 0.75Filter Thread
122 gWeight
Dimensions

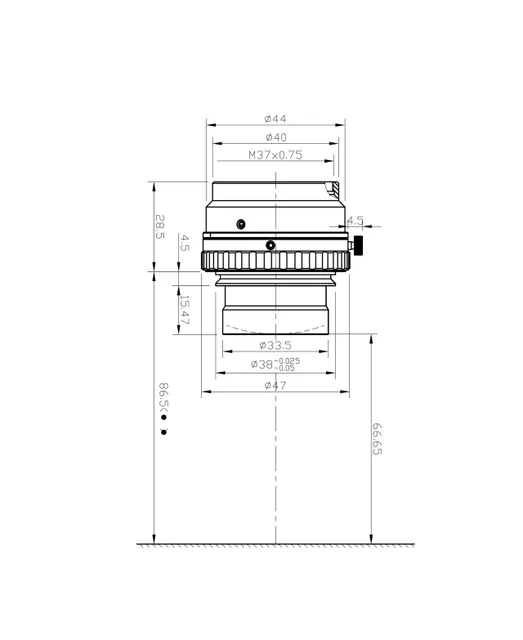

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- Weight122 g
- Filter ThreadM37 x 0.75
Product overview
SAM-LS90F45-C90 (90mm Line Scan Lens (90 mm image circle)) is listed in the Line Scan range. Catalogue values include 90 mm image circle.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 90 mm |
| Resolving Power | 40 lp/mm |
| Image Circle | 90 mm |
| Aperture | F4.5 |
| Filter Thread | M37 x 0.75 |
| Weight | 122 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
