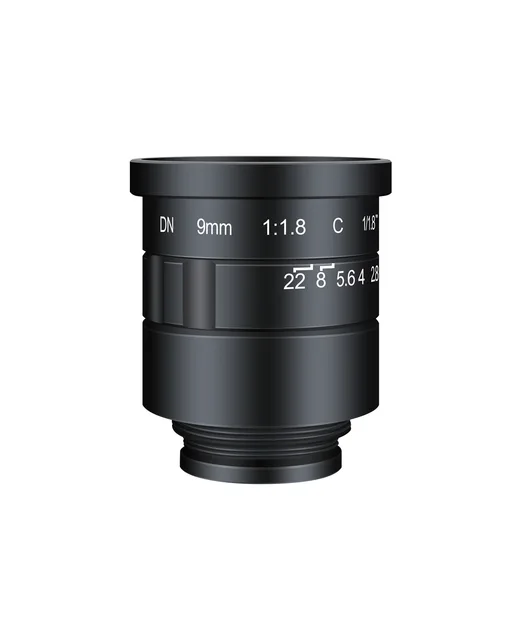

SAM-FA9F18-C18-DN — 9mm Day/Night Machine Vision Lens (1/1.8", C-Mount)
Fixed focal lenses for automation, positioning, code reading and general inspection.
9 mmFocal Length
1/1.8"Sensor Size
180 lp/mmResolving Power
C-MountMount
F1.8Aperture
200 mm - infWorking Distance
Dimensions

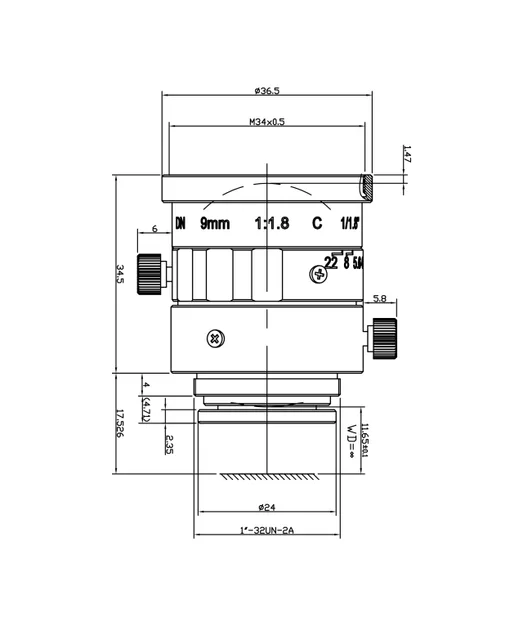

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ36.5 x 34.5 mm
- Weight84.7 g
- Back Focal Length11.9 mm
- Filter ThreadM34 x 0.5
- MountC-Mount
Product overview
SAM-FA9F18-C18-DN (9mm Day/Night Machine Vision Lens) is listed in the FA Lenses range. Catalogue values include 1/1.8" sensor, C-Mount, distortion <3%, WD 200 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 9 mm |
| Sensor Size | 1/1.8" |
| Resolving Power | 180 lp/mm |
| Mount | C-Mount |
| Aperture | F1.8 |
| Working Distance | 200 mm - inf |
| Filter Thread | M34 x 0.5 |
| Field of View | 54.1° x 33.52° x 44.08° |
| Distortion | <3% |
| Back Focal Length | 11.9 mm |
| Iris | Manual |
| Dimensions | Φ36.5 x 34.5 mm |
| Weight | 84.7 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
