SAM-FA25F18-C23-10M

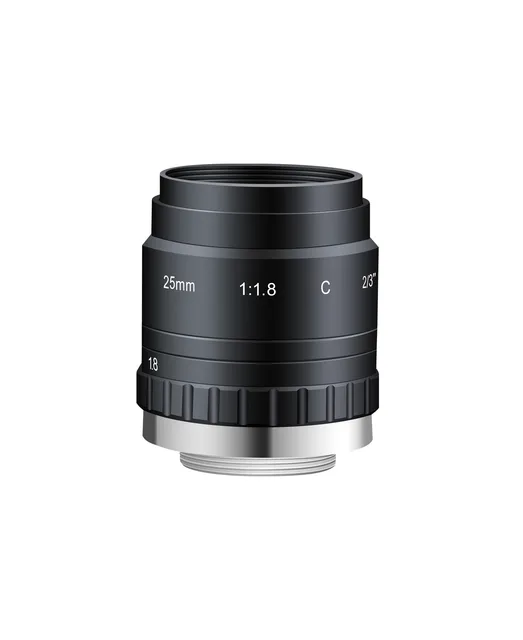

SAM-FA25F18-C23-10M — 25mm 10 MP Machine Vision Lens (2/3", C-Mount)
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
2/3"Sensor Size
10 MPResolution
200 lp/mmResolving Power
C-MountMount
F1.8 - F32Aperture
Dimensions

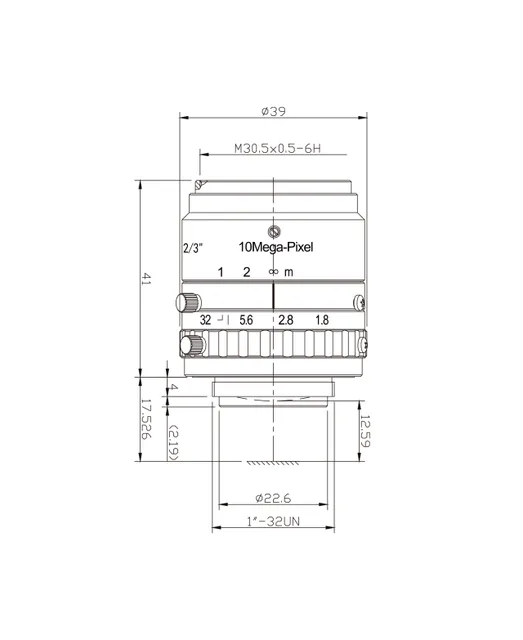

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ39 x 41 mm
- Weight140 g
- Back Focal Length12.59 mm
- Filter ThreadM30.5 x 0.5
- MountC-Mount
Product overview
SAM-FA25F18-C23-10M (25mm 10 MP Machine Vision Lens) is listed in the FA Lenses range. Catalogue values include 2/3" sensor, C-Mount, distortion <-0.13%, WD 200 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 2/3" |
| Resolution | 10 MP |
| Resolving Power | 200 lp/mm |
| Mount | C-Mount |
| Aperture | F1.8 - F32 |
| Working Distance | 200 mm - inf |
| Filter Thread | M30.5 x 0.5 |
| Field of View | 24.5° x 14.84° x 19.7° |
| Distortion | <-0.13% |
| Back Focal Length | 12.59 mm |
| Iris | Manual with locking screw |
| Dimensions | Φ39 x 41 mm |
| Weight | 140 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
