SAM-FA50F20-C23-5M

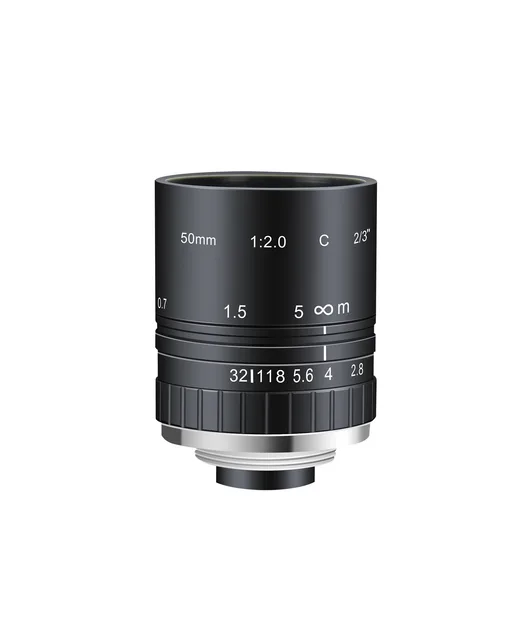

SAM-FA50F20-C23-5M — 50mm 5 MP Machine Vision Lens (2/3", C-Mount)
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
2/3"Sensor Size
5 MPResolution
150 lp/mmResolving Power
C-MountMount
F2 - F32Aperture
Dimensions

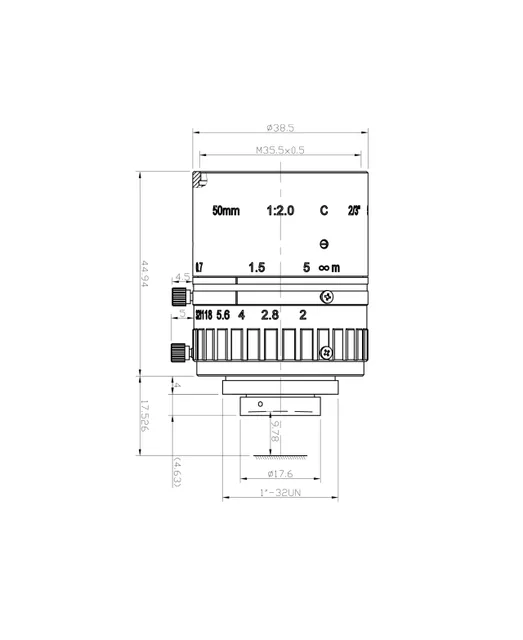

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ38.5 x 44.94 mm
- Weight152 g
- Back Focal Length9.78 mm
- Filter ThreadM35.5 x 0.5
- MountC-Mount
Product overview
SAM-FA50F20-C23-5M (50mm 5 MP Machine Vision Lens) is listed in the FA Lenses range. Catalogue values include 2/3" sensor, C-Mount, distortion <-0.1%, WD 400 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 2/3" |
| Resolution | 5 MP |
| Resolving Power | 150 lp/mm |
| Mount | C-Mount |
| Aperture | F2 - F32 |
| Working Distance | 400 mm - inf |
| Filter Thread | M35.5 x 0.5 |
| Field of View | 12.36° x 7.45° x 9.92° |
| Distortion | <-0.1% |
| Back Focal Length | 9.78 mm |
| Iris | Manual with locking screw |
| Dimensions | Φ38.5 x 44.94 mm |
| Weight | 152 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
