SAM-FA36.7F24-C12

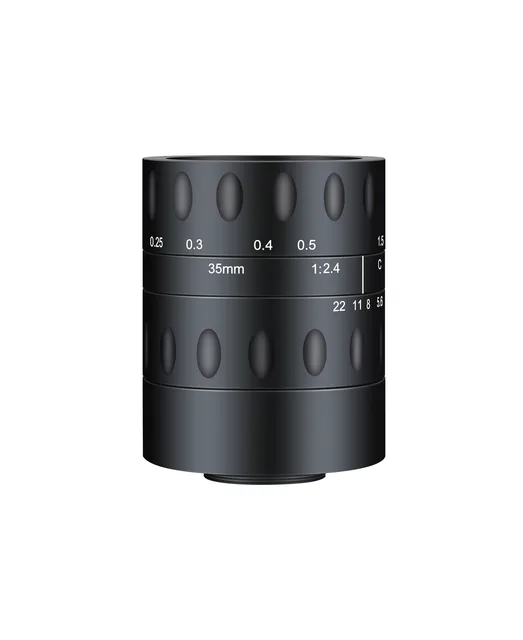

SAM-FA36.7F24-C12 — 36.7mm Machine Vision Lens (1.2", C-Mount)
Fixed focal lenses for automation, positioning, code reading and general inspection.
36.7 mmFocal Length
1.2"Sensor Size
180 lp/mmResolving Power
C-MountMount
F2.4Aperture
230 mm - infWorking Distance
Dimensions

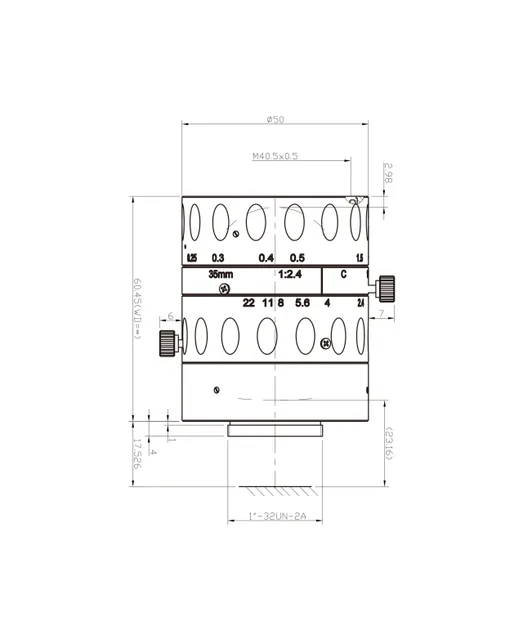

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ50 x 60.45 mm
- Weight308.5 g
- Back Focal Length23.16 mm
- Filter ThreadM40.5 x 0.5
- MountC-Mount
Product overview
SAM-FA36.7F24-C12 (36.7mm Machine Vision Lens) is listed in the FA Lenses range. Catalogue values include 1.2" sensor, C-Mount, distortion <0.5%, WD 230 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 36.7 mm |
| Sensor Size | 1.2" |
| Resolving Power | 180 lp/mm |
| Mount | C-Mount |
| Aperture | F2.4 |
| Working Distance | 230 mm - inf |
| Filter Thread | M40.5 x 0.5 |
| Field of View | 26.44° x 17.26° x 20.00° |
| Distortion | <0.5% |
| Back Focal Length | 23.16 mm |
| Iris | Manual |
| Dimensions | Φ50 x 60.45 mm |
| Weight | 308.5 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
