SAM-FA16.4F18-C18-DN
SAM-FA16.4F18-C18-DN — 16.4mm Day/Night Machine Vision Lens (1/1.8", C-Mount)
Fixed focal lenses for automation, positioning, code reading and general inspection.
16.4 mmFocal Length
1/1.8"Sensor Size
200 lp/mmResolving Power
C-MountMount
F1.8Aperture
200 mm - infWorking Distance
Dimensions

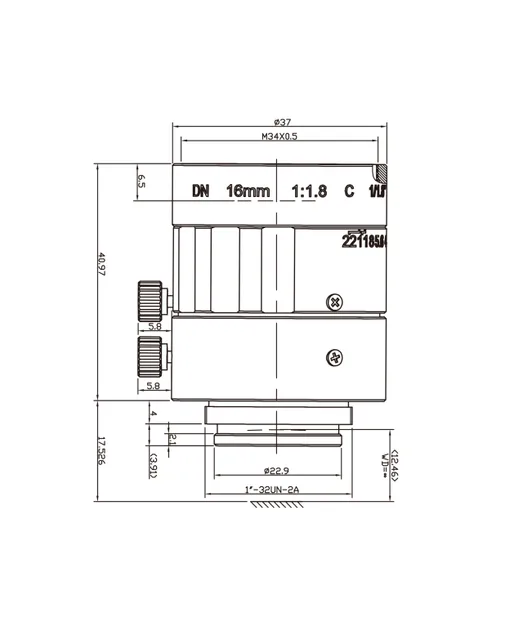

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ37 x 40.97 mm
- Weight109.6 g
- Back Focal Length12.46 mm
- Filter ThreadM34 x 0.5
- MountC-Mount
Product overview
SAM-FA16.4F18-C18-DN (16.4mm Day/Night Machine Vision Lens) is listed in the FA Lenses range. Catalogue values include 1/1.8" sensor, C-Mount, distortion <-2%, WD 200 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 16.4 mm |
| Sensor Size | 1/1.8" |
| Resolving Power | 200 lp/mm |
| Mount | C-Mount |
| Aperture | F1.8 |
| Working Distance | 200 mm - inf |
| Filter Thread | M34 x 0.5 |
| Field of View | 30.93° x 18.53° x 24.96° |
| Distortion | <-2% |
| Back Focal Length | 12.46 mm |
| Iris | Manual |
| Dimensions | Φ37 x 40.97 mm |
| Weight | 109.6 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
