AZURE-10545UV

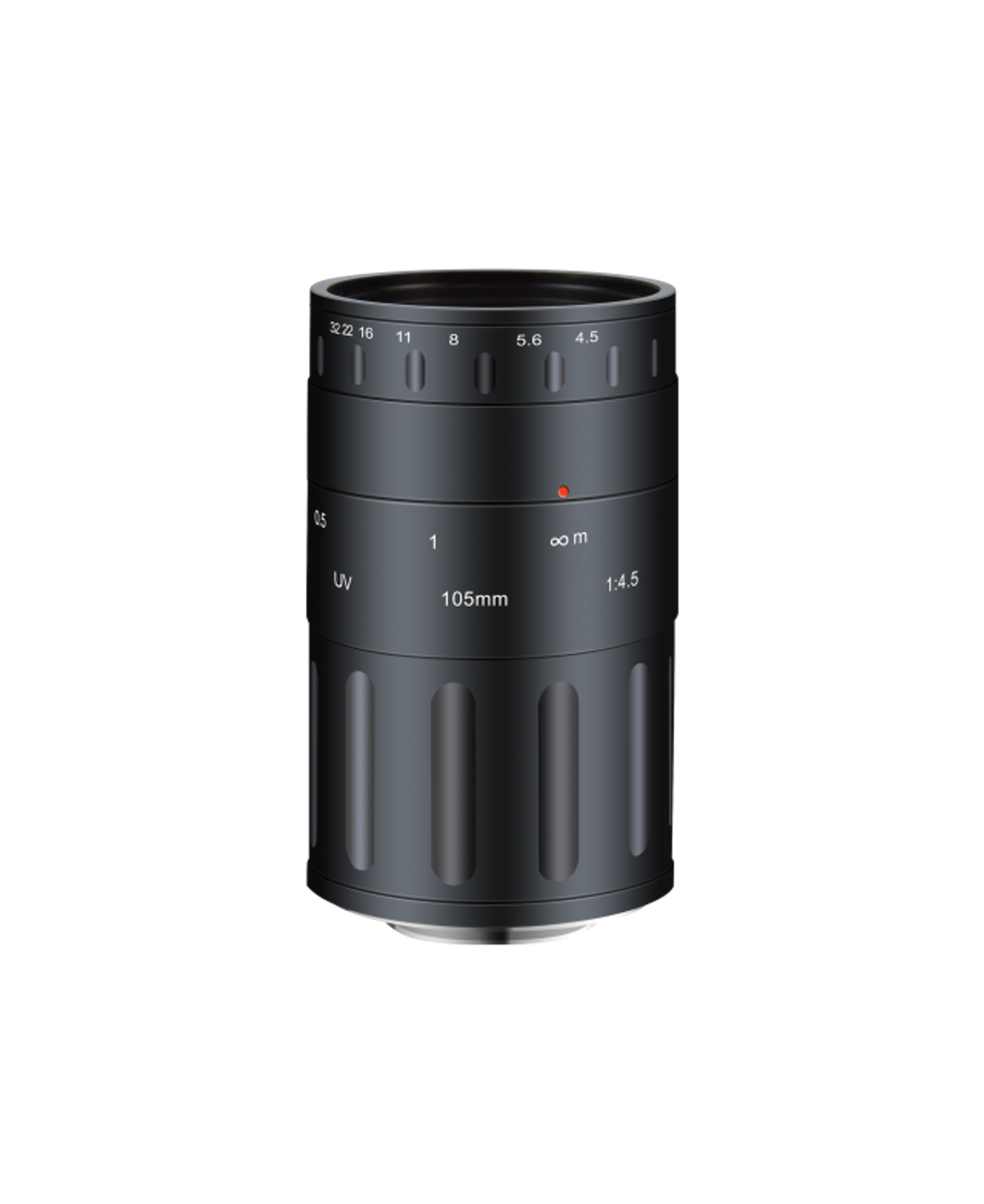

AZURE-10545UV 105mm UV Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
105 mmFocal Length
0X~-0.27X~-0.62XMagnification
45mmSensor Size
50 lp/mmResolving Power
FMount
F4.5Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of AZURE-10545UV.
- DimensionsΦ74×125.01mm
- Weight1150g
- Back Focal Length50.97mm
- Filter ThreadM67×0.75
- MountF
Key Specifications
| Focal Length | 105 mm |
| Magnification | 0X~-0.27X~-0.62X |
| Sensor Size | 45mm |
| Resolving Power | 50 lp/mm |
| Mount | F |
| Aperture | F4.5 |
| Filter Thread | M67×0.75 |
| Distortion | <0.3% |
| Back Focal Length | 50.97mm |
| Iris | Manual |
| Dimensions | Φ74×125.01mm |
| Weight | 1150g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether AZURE-10545UV fits, or recommend a better match.
