SAM-LF35-C43-45M

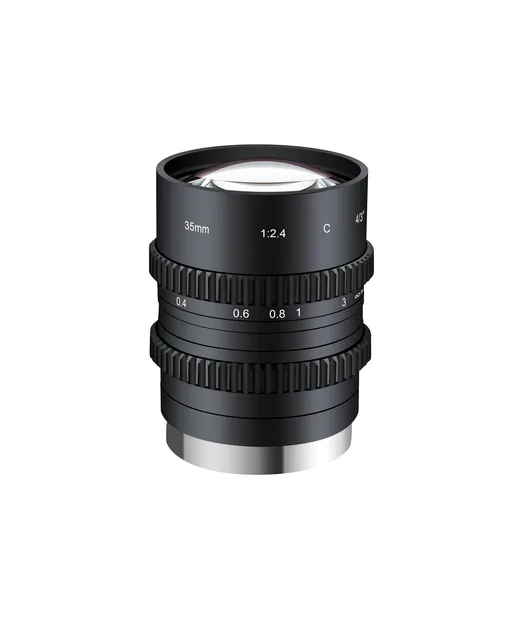

SAM-LF35-C43-45M — 35mm 45 MP Large Format Lens (4/3", C-Mount)
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
35 mmFocal Length
4/3"Sensor Size
45 MPResolution
180 lp/mmResolving Power
C-MountMount
F2.4 - F22Aperture
Dimensions

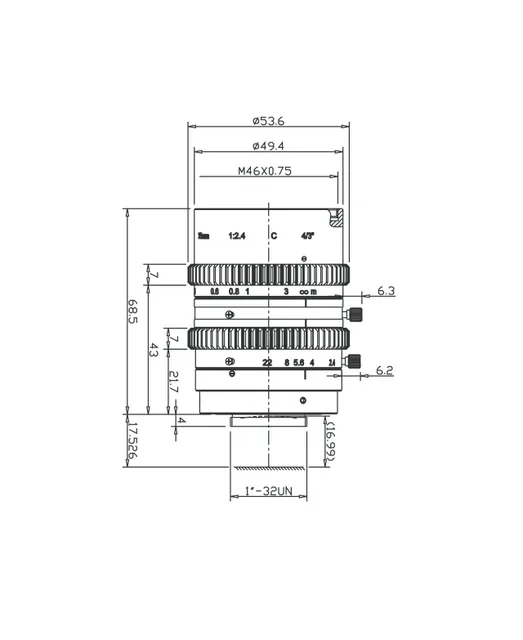

Mechanical dimensions
Overall length, barrel diameter, flange distance and thread sizes, taken from the mechanical drawing. Click the drawing to enlarge it.
- DimensionsΦ53.6 x 68.5 mm
- Back Focal Length16.99 mm
- Filter ThreadM46 x 0.75
- MountC-Mount
Product overview
SAM-LF35-C43-45M (35mm 45 MP Large Format Lens) is listed in the Large Format and Macro range. Catalogue values include 4/3" sensor, C-Mount, distortion <-0.25%, WD 230 mm - inf.
Before ordering, confirm the sensor coverage, mount and available working range against the current drawing and test data for this model.
Key Specifications
| Focal Length | 35 mm |
| Sensor Size | 4/3" |
| Resolution | 45 MP |
| Resolving Power | 180 lp/mm |
| Mount | C-Mount |
| Aperture | F2.4 - F22 |
| Working Distance | 230 mm - inf |
| Filter Thread | M46 x 0.75 |
| Field of View | 33.37° x 20.35° x 26.98° |
| Distortion | <-0.25% |
| Back Focal Length | 16.99 mm |
| Iris | Manual |
| Dimensions | Φ53.6 x 68.5 mm |
Frequently asked questions
Which sensor size and resolution does SAM-LF35-C43-45M support?
It is specified for 4/3" sensors at 45 MP resolution.
What working distance and magnification are specified?
Working distance 230 mm to infinity.
What optical error figures are specified?
Distortion less than 0.25%.
Which mount does SAM-LF35-C43-45M use?
The mount is C-Mount.
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
A verified PDF datasheet is not published for this model yet. We send the current drawing, available test data and 2D or 3D files after checking them against your sensor and mount.
