ML3510C

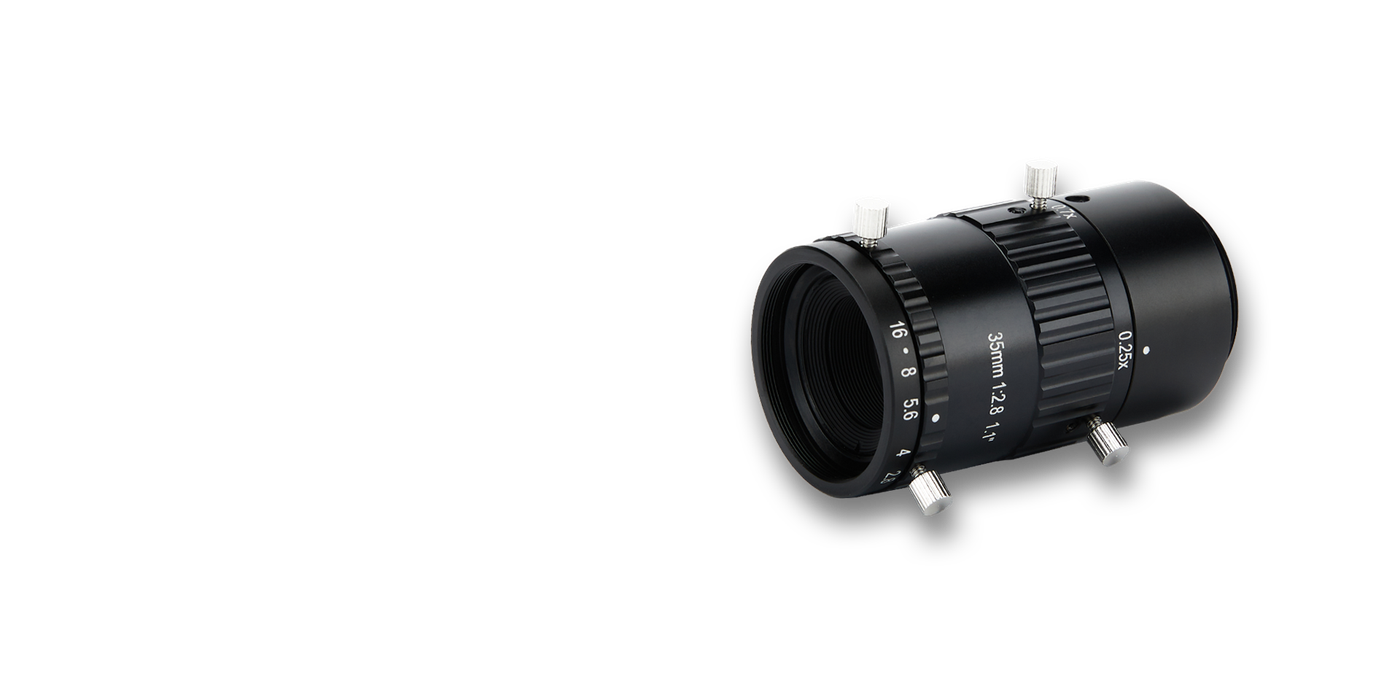

ML3510C 35mm Macro Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
35 mmFocal Length
1.1”Sensor Size
12 MPResolution
12MPResolving Power
C-MountMount
2.8-16Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of ML3510C.
- Dimensionsφ32×(52.6-69.6）
- Weight83
- Filter ThreadM27×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 35 mm |
| Sensor Size | 1.1” |
| Resolution | 12 MP |
| Resolving Power | 12MP |
| Mount | C-Mount |
| Aperture | 2.8-16 |
| MOD | 59-150 |
| Filter Thread | M27×P0.5 |
| Distortion | ﹤|-0.1%| |
| Dimensions | φ32×(52.6-69.6） |
| Weight | 83 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
