HN-P-2528-6M-C1/1.8

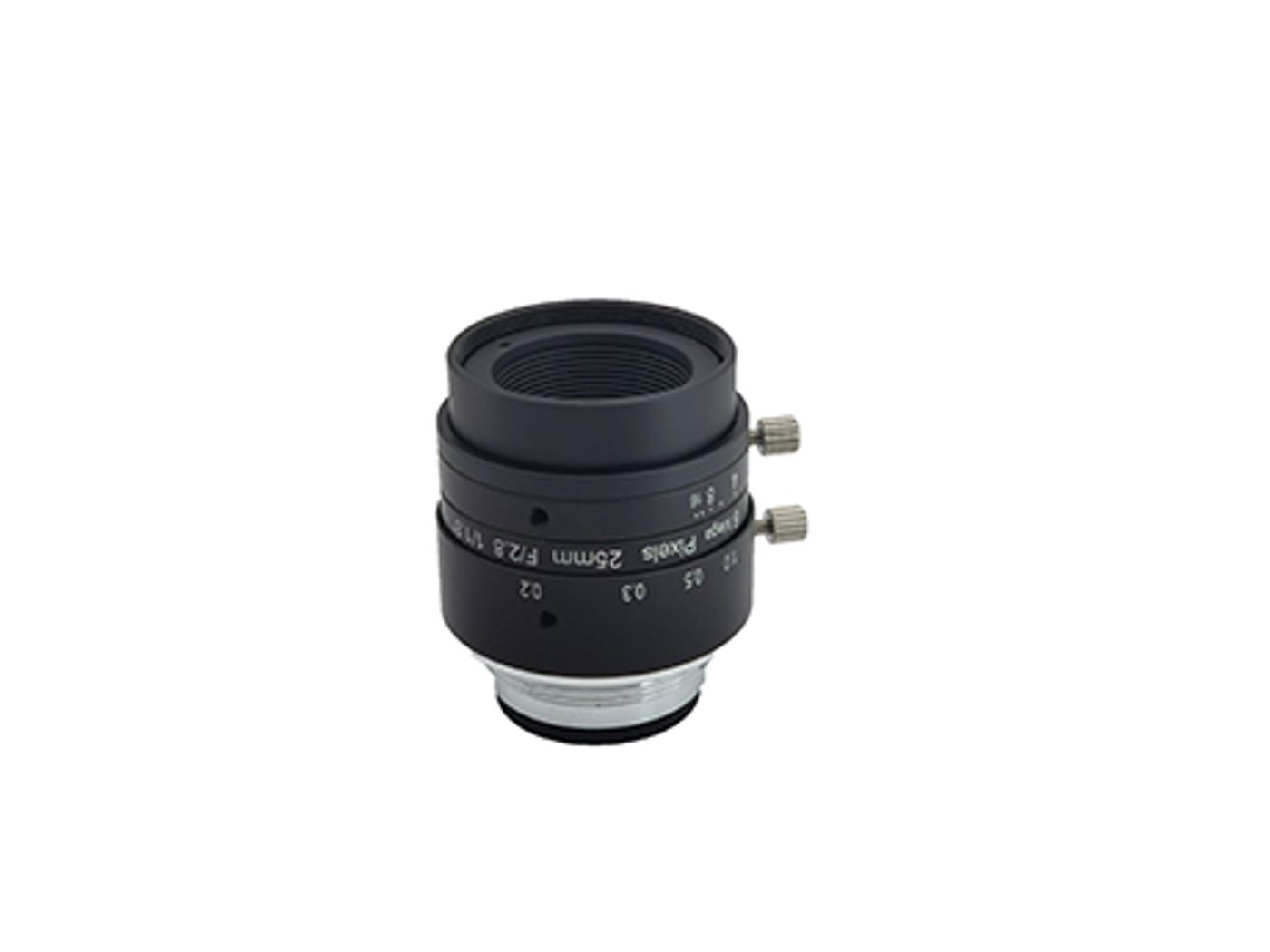

Daheng HN-P-2528-6M-C1/1.8 25mm 6 MP Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
1/1.8"Sensor Size
6 MPResolution
C-mountMount
F2.8 - F16Aperture
200 mm - ∞Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of HN-P-2528-6M-C1/1.8.
- DimensionsΦ33.0 × 30.22 mm (D × L)
- Weight48 g
- Filter ThreadM27 × 0.5
- MountC-mount
Key features
- Designed for machine vision
- 6 MP high-resolution optics
- Compact barrel for constrained mounting spaces
- Sensor coverage that matches most industrial cameras
- Very low optical distortion for stable measurement
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 1/1.8" |
| Resolution | 6 MP |
| Mount | C-mount |
| Aperture | F2.8 - F16 |
| Working Distance | 200 mm - ∞ |
| MOD | 200 mm |
| Filter Thread | M27 × 0.5 |
| Field of View | 18.45° × 12.46° (H × V) |
| Distortion | ±0.5% |
| Focus Range | 0.2 m - ∞ |
| Pixel Size | 2.4 µm |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ33.0 × 30.22 mm (D × L) |
| Weight | 48 g |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
