HN-P-2524-12M-C1.1/1

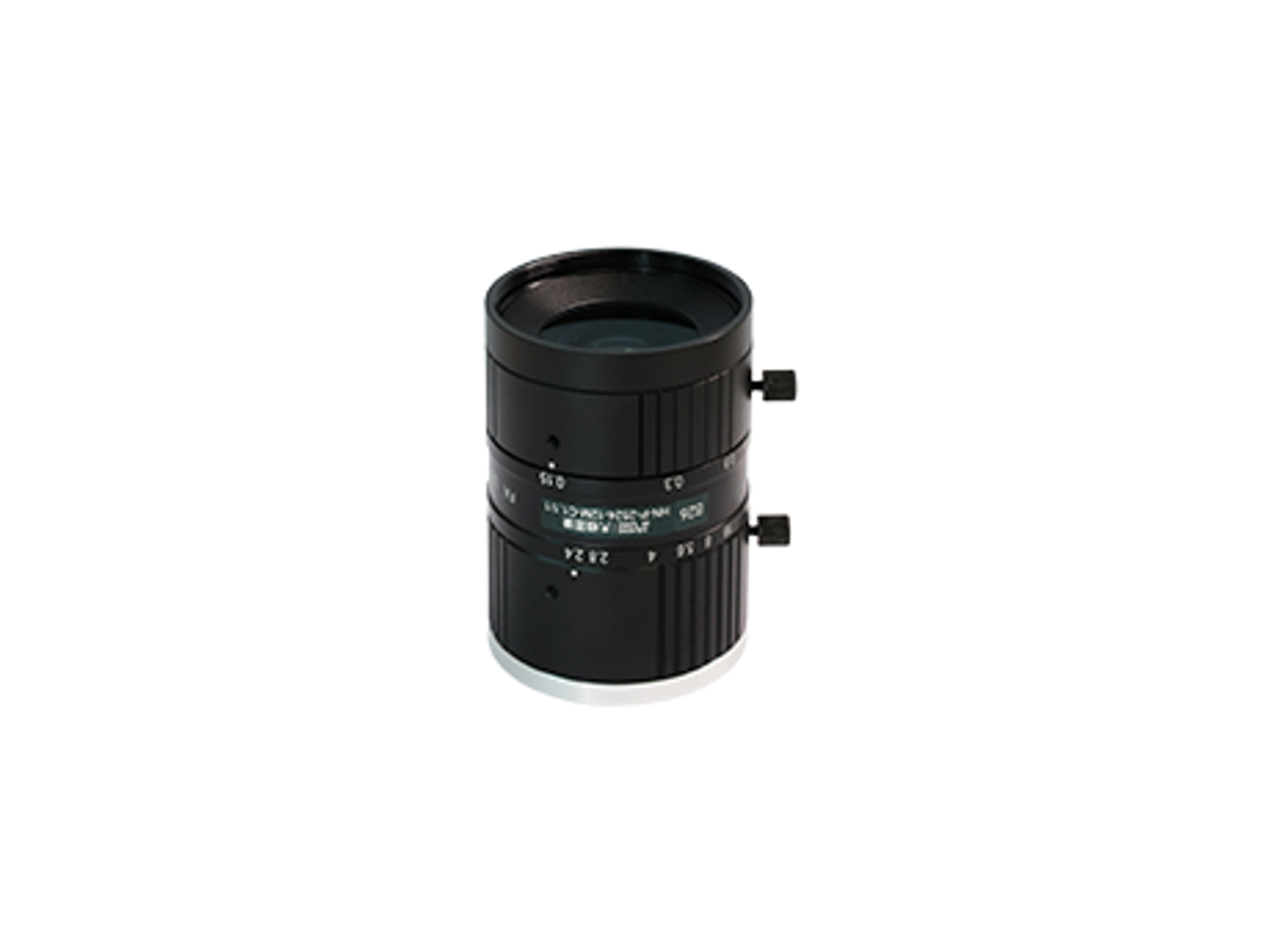

Daheng HN-P-2524-12M-C1.1/1 25.25mm 12 MP Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25.25 mmFocal Length
1.1"Sensor Size
12 MPResolution
C-mountMount
F2.4 - F16Aperture
300 mmWorking Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of HN-P-2524-12M-C1.1/1.
- DimensionsΦ40.00 × 58.44 mm (D × L)
- Filter ThreadM37 × 0.5
- MountC-mount
Key features
- 25.25 mm focal length
- 1.1" image circle
- 12 MP design
- F2.4 - F16 aperture range
- Low optical distortion
- Compact barrel
Key Specifications
| Focal Length | 25.25 mm |
| Sensor Size | 1.1" |
| Resolution | 12 MP |
| Mount | C-mount |
| Aperture | F2.4 - F16 |
| Working Distance | 300 mm |
| MOD | — |
| Filter Thread | M37 × 0.5 |
| Field of View | 31.42° × 27.32° (H × V) |
| Distortion | optical -0.32% / TV -0.04% |
| Focus Range | 0.15 m - ∞ |
| Pixel Size | 4 µm |
| Iris | Manual |
| Focus | Manual |
| Dimensions | Φ40.00 × 58.44 mm (D × L) |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
