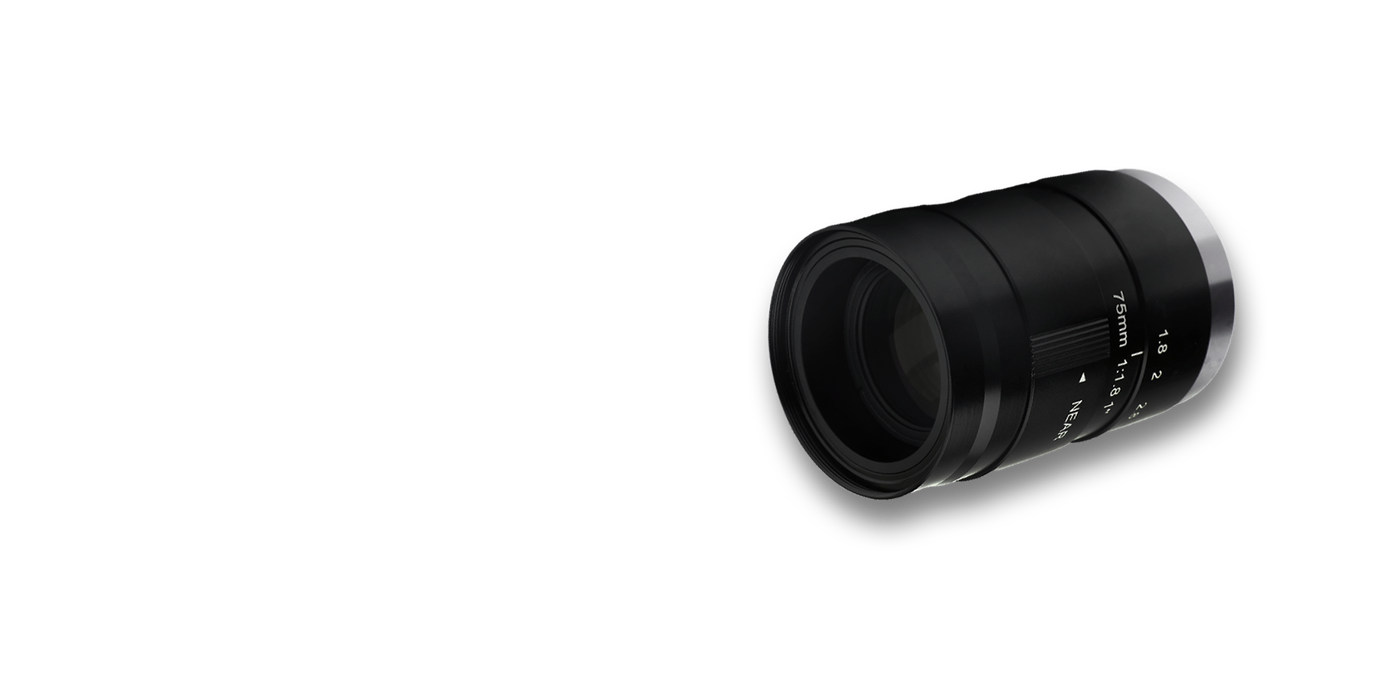

HC7505A 75mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
75 mmFocal Length
1”Sensor Size
5 MPResolution
5MPResolving Power
C-MountMount
1.8-16Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of HC7505A.
- Dimensionsφ60×90.6
- Weight472
- Filter ThreadM55×P0.75
- MountC-Mount
Key Specifications
| Focal Length | 75 mm |
| Sensor Size | 1” |
| Resolution | 5 MP |
| Resolving Power | 5MP |
| Mount | C-Mount |
| Aperture | 1.8-16 |
| MOD | 0.8m、0.115X |
| Filter Thread | M55×P0.75 |
| Field of View | 1/2"视场角Angle 4.9°×3.6°; 2/3"视场角Angle 6.74°×5°; 1"视场角Angle 9.8°×7.4° |
| Distortion | ﹤0.1% |
| Dimensions | φ60×90.6 |
| Weight | 472 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether HC7505A fits, or recommend a better match.
