FK5002

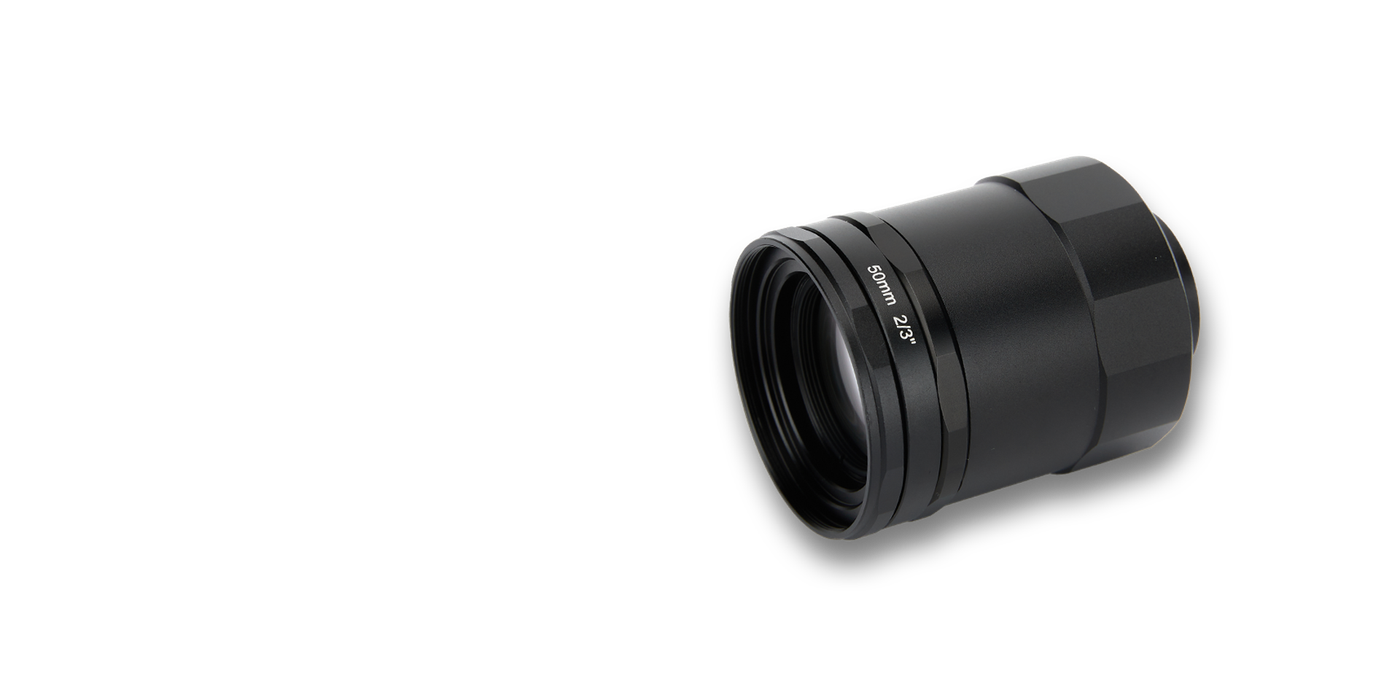

FK5002 50mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
2/3”Sensor Size
5 MPResolution
5MPResolving Power
C-MountMount
1.4/2.0/2.8/4/5.6/8/16Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FK5002.
- Dimensionsφ40×47.5
- Filter ThreadM37×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 2/3” |
| Resolution | 5 MP |
| Resolving Power | 5MP |
| Mount | C-Mount |
| Aperture | 1.4/2.0/2.8/4/5.6/8/16 |
| MOD | 0.3m、0.177X |
| Filter Thread | M37×P0.5 |
| Field of View | 1/3"视场角Angle 5.7°×4.3°; 1/2"视场角Angle 7.6°×5.27°; 2/3"视场角Angle 10.46°×7.86° |
| Distortion | ﹤|-0.15%| |
| Dimensions | φ40×47.5 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
