FK0815A

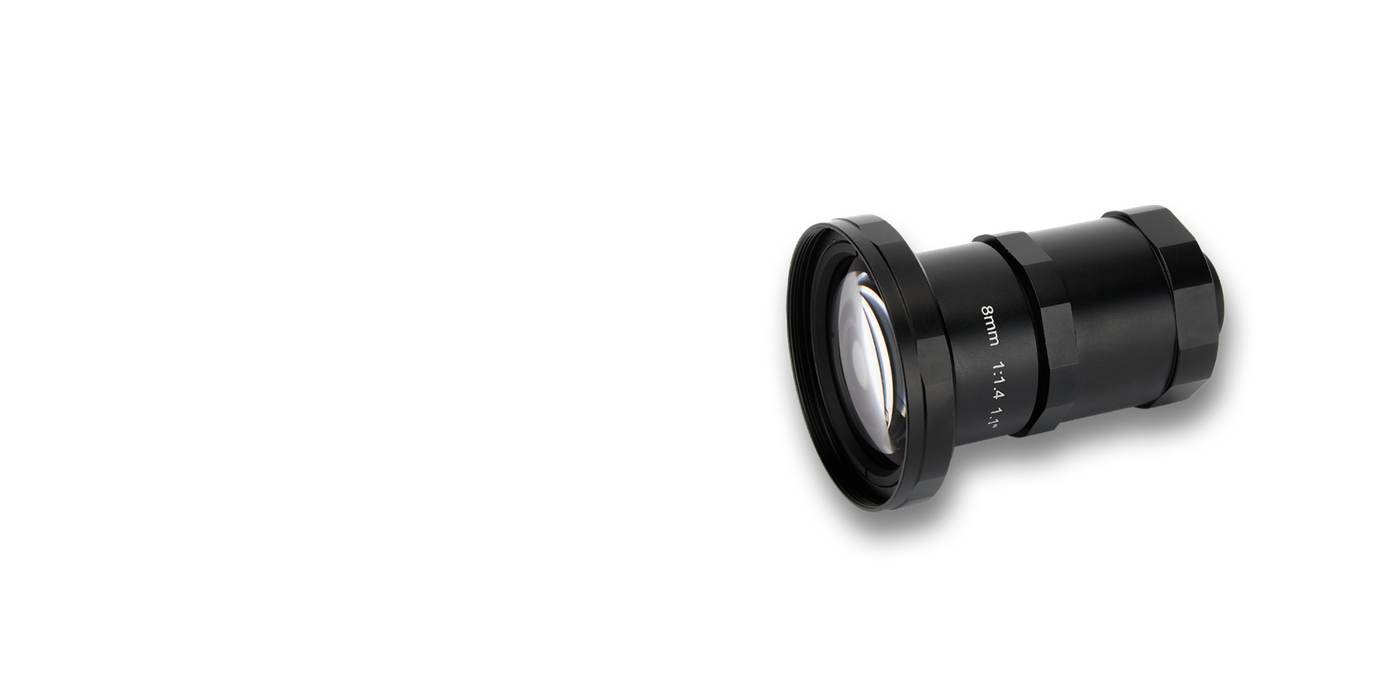

FK0815A 8mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
8 mmFocal Length
1.1”Sensor Size
5 MPResolution
5MPResolving Power
C-MountMount
1.4/2.8/4/8Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FK0815A.
- Dimensionsφ60.8×77.9
- Filter ThreadM58×P0.75
- MountC-Mount
Key Specifications
| Focal Length | 8 mm |
| Sensor Size | 1.1” |
| Resolution | 5 MP |
| Resolving Power | 5MP |
| Mount | C-Mount |
| Aperture | 1.4/2.8/4/8 |
| MOD | 0.1m、0.064X |
| Filter Thread | M58×P0.75 |
| Field of View | 1/3"视场角Angle 57.6°×44.9°(2/3; 1/2"视场角Angle 77.1°×61.8°(1; 2/3"视场角Angle 84.8°×68°(1.1 |
| Distortion | ﹤5.5% |
| Dimensions | φ60.8×77.9 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
