FA7510A

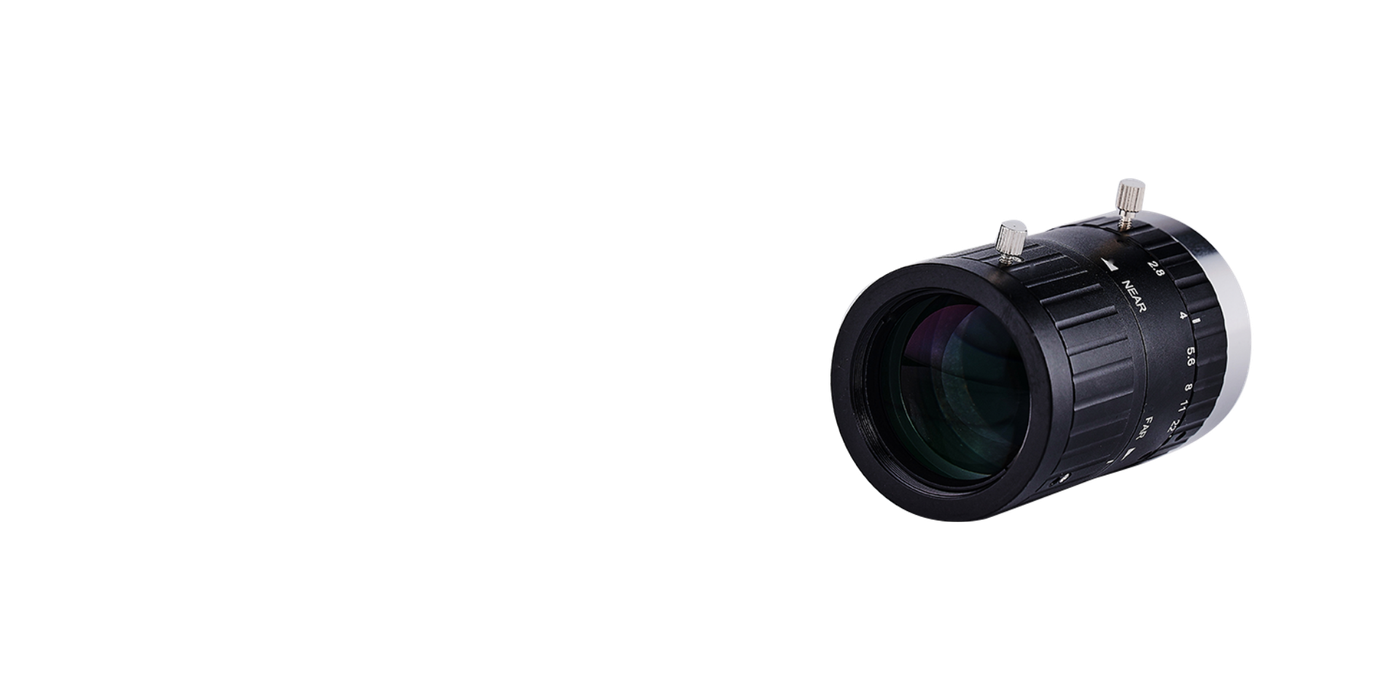

FA7510A 75mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
75 mmFocal Length
2/3”Sensor Size
10 MPResolution
10MPResolving Power
C-MountMount
2.8-22Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA7510A.
- Dimensionsφ38×（60.7-72.9）
- Filter ThreadM30.5×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 75 mm |
| Sensor Size | 2/3” |
| Resolution | 10 MP |
| Resolving Power | 10MP |
| Mount | C-Mount |
| Aperture | 2.8-22 |
| Filter Thread | M30.5×P0.5 |
| Field of View | 1/3"视场角Angle 3.66°×2.75°; 1/2"视场角Angle 4.88°×3.67°; 2/3"视场角Angle 6.71°×5.04° |
| Distortion | ﹤0.2% |
| Dimensions | φ38×（60.7-72.9） |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
