FA5045A

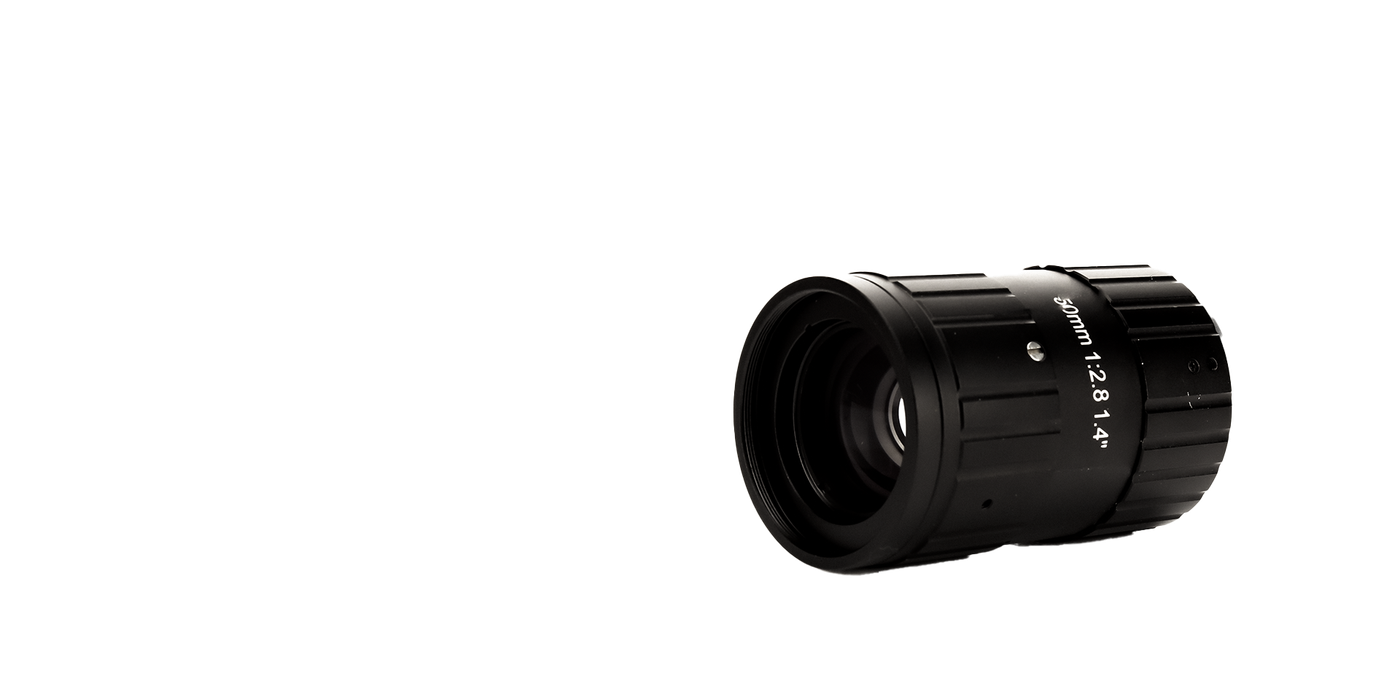

FA5045A 50mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
1.4”Sensor Size
45 MPResolution
45MPResolving Power
C-MountMount
2.8-16Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA5045A.
- Dimensionsφ39.2×61.721（min）
- Weight168
- Filter ThreadM35.5×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 1.4” |
| Resolution | 45 MP |
| Resolving Power | 45MP |
| Mount | C-Mount |
| Aperture | 2.8-16 |
| MOD | 0.25m、0.2412X |
| Filter Thread | M35.5×P0.5 |
| Field of View | 1.4"视场角Angle 21.5°×14.7° |
| Distortion | ﹤-0.03% |
| Dimensions | φ39.2×61.721（min） |
| Weight | 168 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
