FA5025A

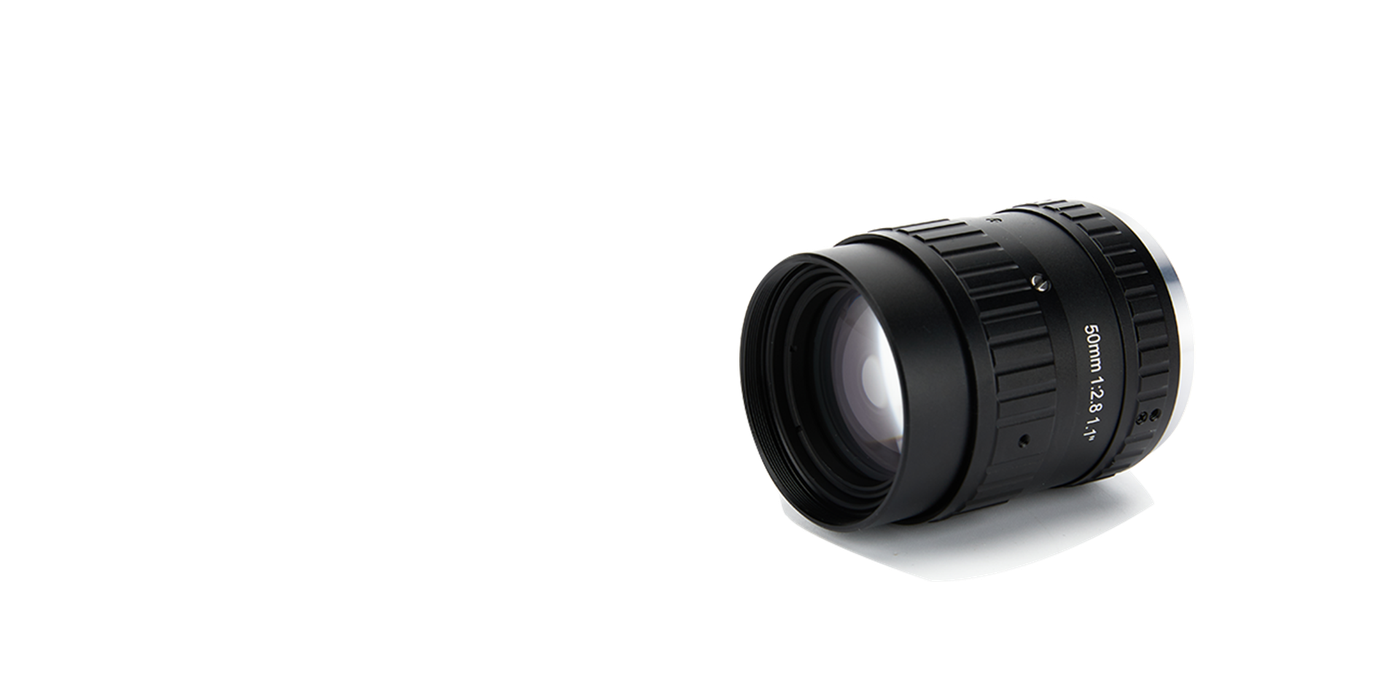

FA5025A 50mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
1.2”Sensor Size
25 MPResolution
25MPResolving Power
C-MountMount
2.8-16Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA5025A.
- Dimensionsφ46.4×59.3
- Weight178
- Filter ThreadM40.5×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 1.2” |
| Resolution | 25 MP |
| Resolving Power | 25MP |
| Mount | C-Mount |
| Aperture | 2.8-16 |
| MOD | 0.3m、0.185X |
| Filter Thread | M40.5×P0.5 |
| Field of View | 2/3"视场角Angle 11.6°×8.9°; 1"视场角Angle 14.6°×11.7°; 1.1"视场角Angle 16.1°×12.9° |
| Distortion | ﹤0.1% |
| Dimensions | φ46.4×59.3 |
| Weight | 178 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
