FA5020A

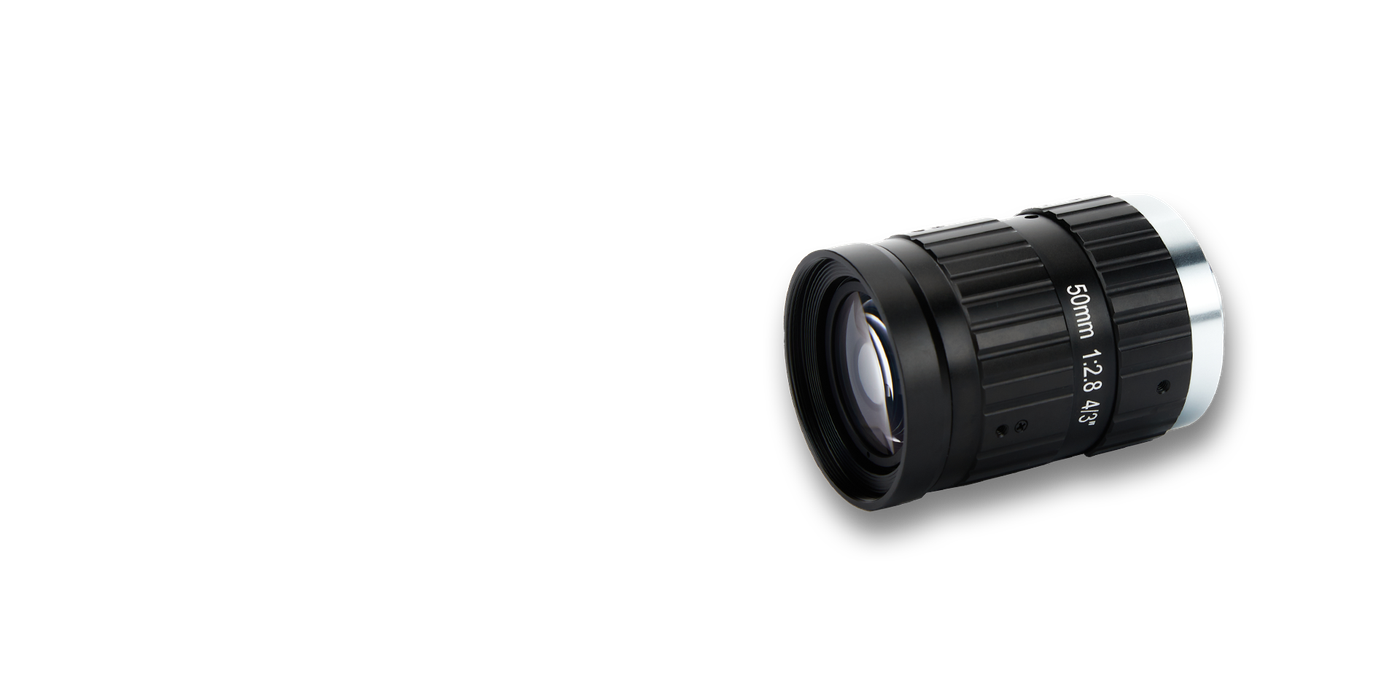

FA5020A 50mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
4/3”Sensor Size
20 MPResolution
20MPResolving Power
C-MountMount
2.8-22Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA5020A.
- Dimensionsφ38×53.9
- Weight132
- Filter ThreadM35.5×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 4/3” |
| Resolution | 20 MP |
| Resolving Power | 20MP |
| Mount | C-Mount |
| Aperture | 2.8-22 |
| MOD | 0.3m、0.179X |
| Filter Thread | M35.5×P0.5 |
| Field of View | 2/3"视场角Angle 10.1°×7.5°; 1"视场角Angle 14.6°×11.7°; 4/3" 视场角Angle 19.8°×14.9° |
| Distortion | ﹤0.1% |
| Dimensions | φ38×53.9 |
| Weight | 132 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
