FA5010A

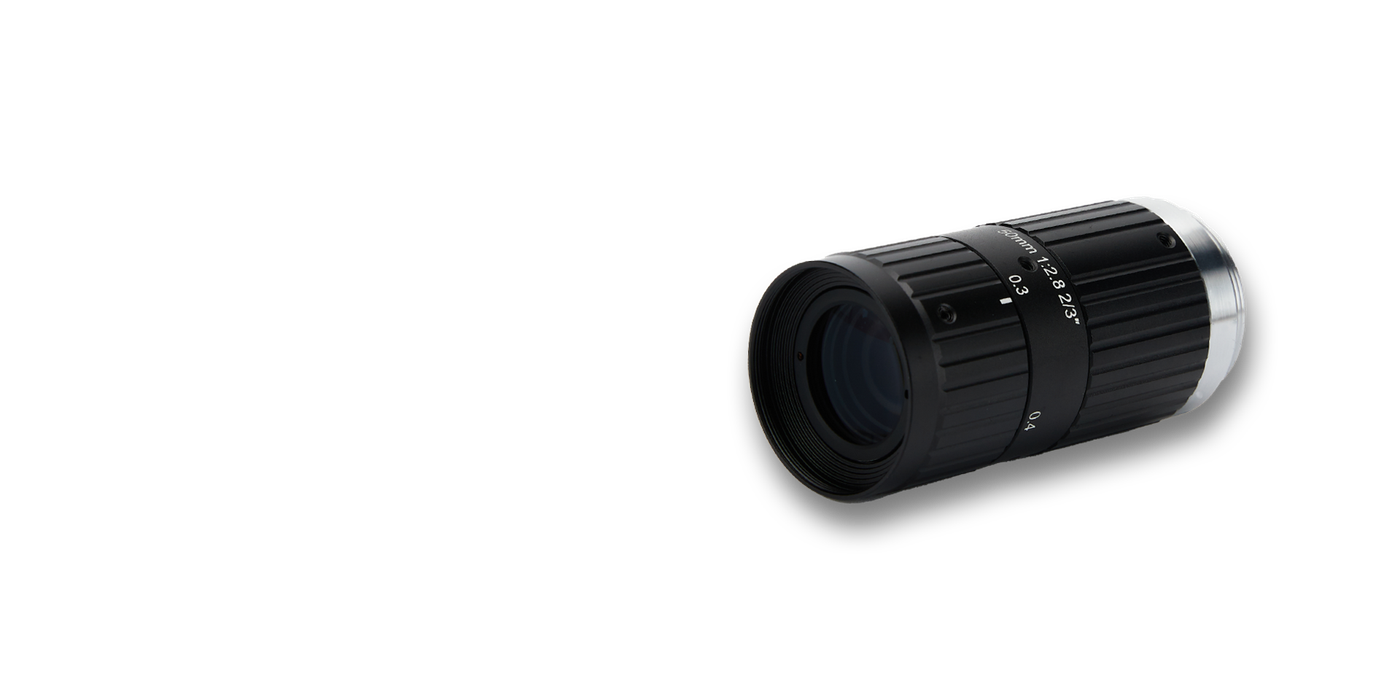

FA5010A 50mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
50 mmFocal Length
2/3”Sensor Size
10 MPResolution
10MPResolving Power
C-MountMount
2.8-16Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA5010A.
- Dimensionsφ29
- Weight87
- Filter ThreadM27×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 50 mm |
| Sensor Size | 2/3” |
| Resolution | 10 MP |
| Resolving Power | 10MP |
| Mount | C-Mount |
| Aperture | 2.8-16 |
| MOD | 0.3m、0.188X |
| Filter Thread | M27×P0.5 |
| Field of View | 1/3"视场角Angle 6.2°×5.4°; 1/2"视场角Angle 8.2°×7.2°; 2/3"视场角Angle 10.4°×8.4° |
| Distortion | ﹤-0.1% |
| Dimensions | φ29 |
| Weight | 87 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether FA5010A fits, or recommend a better match.
