FA2516M3

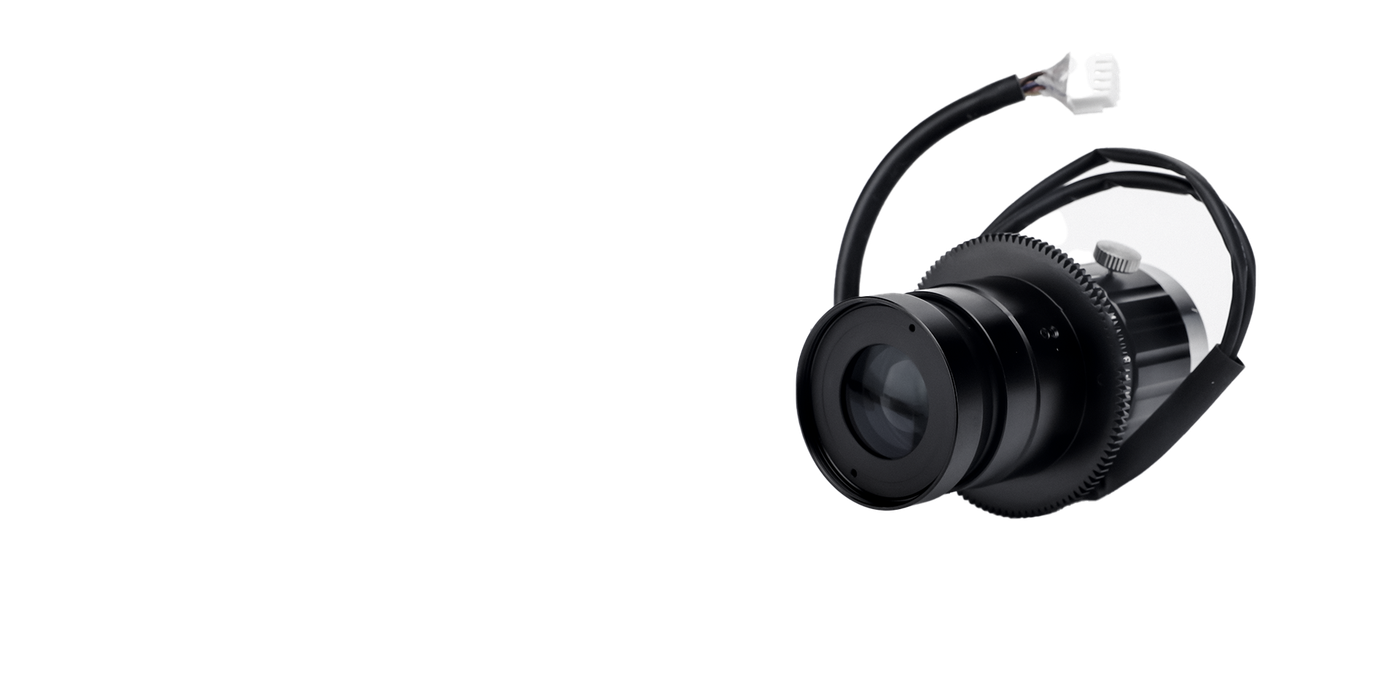

FA2516M3 25mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
1.1”Sensor Size
20 MPResolution
20MPResolving Power
C-MountMount
2.8-22Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA2516M3.
- Dimensionsφ60×78.03
- Filter ThreadM35.5×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 1.1” |
| Resolution | 20 MP |
| Resolving Power | 20MP |
| Mount | C-Mount |
| Aperture | 2.8-22 |
| MOD | 0.1m、0.221X |
| Filter Thread | M35.5×P0.5 |
| Field of View | 2/3"视场角Angle 19.2°×14.5°; 1"视场角Angle 27.6°×20.9°; 1.1"视场角Angle 30.4°×23° |
| Distortion | ﹤0.1% |
| Dimensions | φ60×78.03 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether FA2516M3 fits, or recommend a better match.
