FA2501C

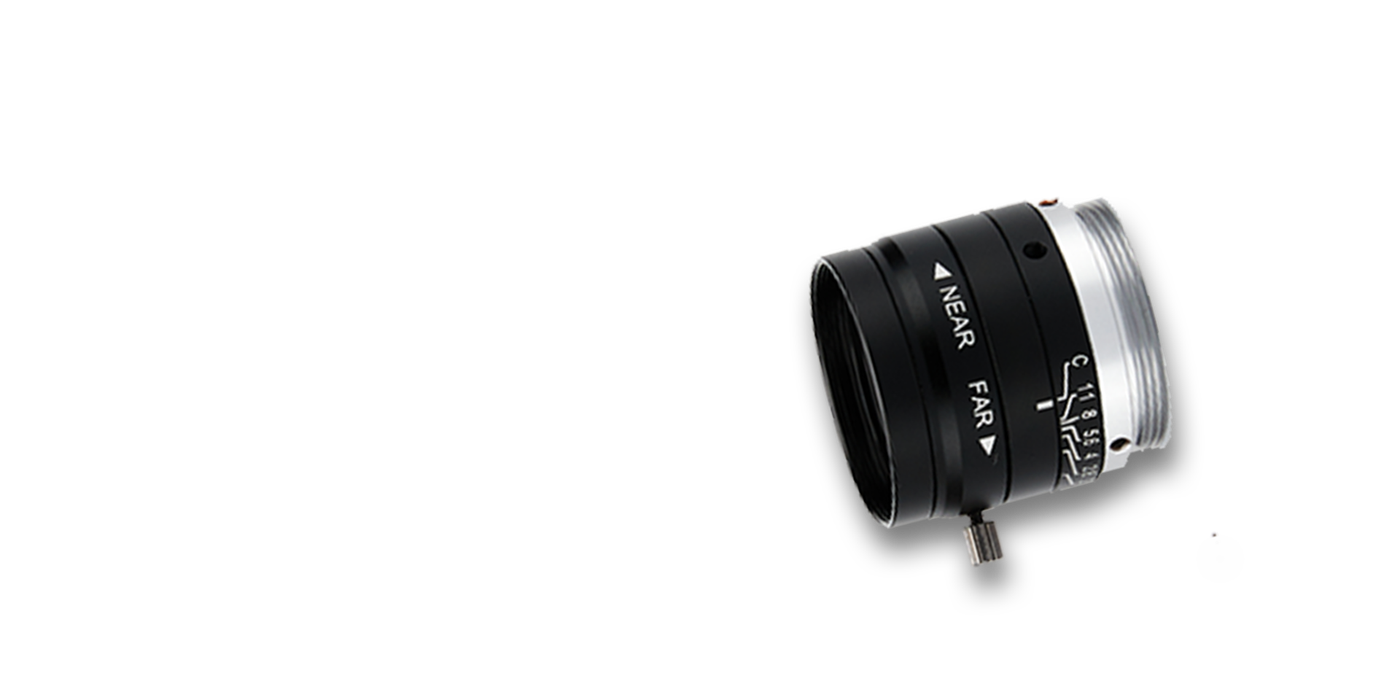

FA2501C 25mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
25 mmFocal Length
1/1.8”Sensor Size
5 MPResolution
5MPResolving Power
C-MountMount
2.0-CAperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA2501C.
- Dimensionsφ27×23.5
- Weight28
- Filter ThreadM25.5×P0.5
- MountC-Mount
Key Specifications
| Focal Length | 25 mm |
| Sensor Size | 1/1.8” |
| Resolution | 5 MP |
| Resolving Power | 5MP |
| Mount | C-Mount |
| Aperture | 2.0-C |
| MOD | 0.1m、0.296X |
| Filter Thread | M25.5×P0.5 |
| Field of View | 1/1.8"视场角Angle 13.6°×11.3°; 1/2.5"视场角Angle 13.4°×10.3°; 1/3"视场角Angle 11.4°×8.8° |
| Distortion | ﹤0.1% |
| Dimensions | φ27×23.5 |
| Weight | 28 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
