FA1625E

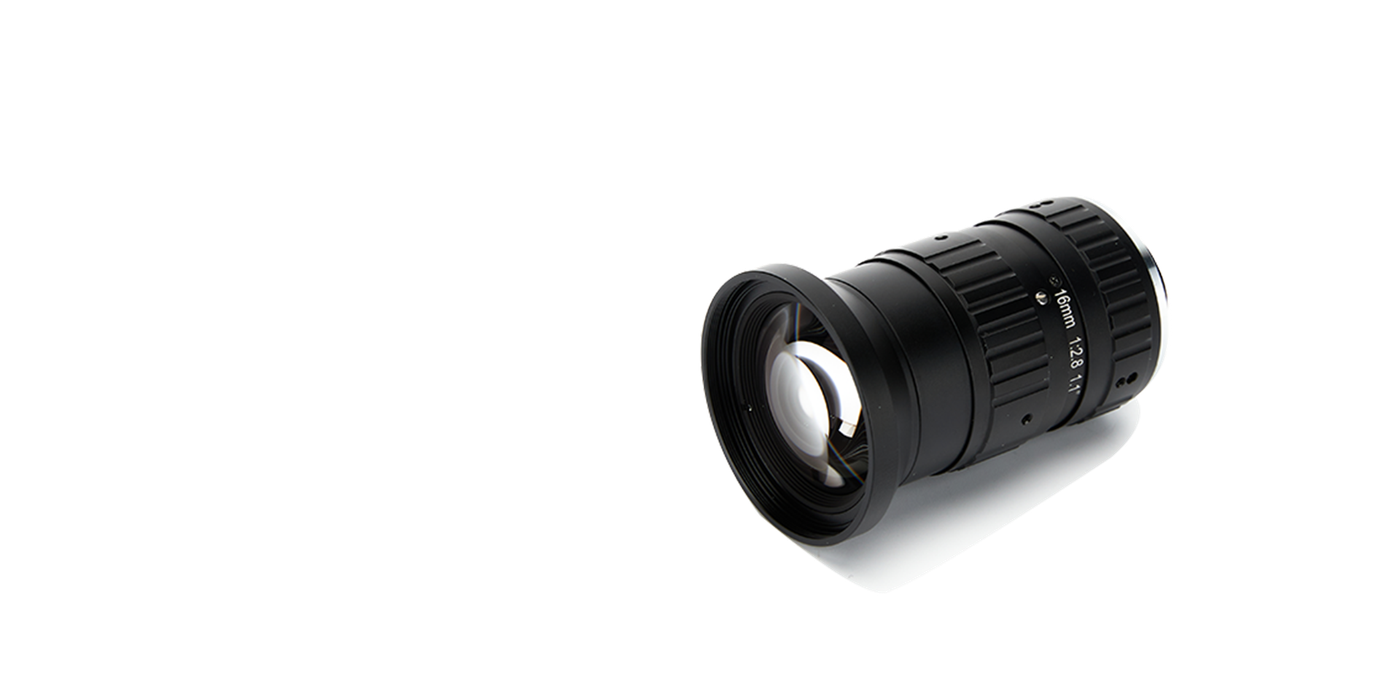

FA1625E 16mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
16 mmFocal Length
1.2”Sensor Size
25 MPResolution
25MPResolving Power
C-MountMount
2.8-16Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA1625E.
- Dimensionsφ45.6×68.2
- Weight176
- Filter ThreadM43×P0.75
- MountC-Mount
Key Specifications
| Focal Length | 16 mm |
| Sensor Size | 1.2” |
| Resolution | 25 MP |
| Resolving Power | 25MP |
| Mount | C-Mount |
| Aperture | 2.8-16 |
| MOD | 0.1m、0.132X |
| Filter Thread | M43×P0.75 |
| Field of View | 2/3"视场角Angle 29.7°×22.5°; 1"视场角Angle 42.1°×32.2°; 1.1"视场角Angle 45.8°×35.3° |
| Distortion | ﹤0.15% |
| Dimensions | φ45.6×68.2 |
| Weight | 176 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
