FA1216M6

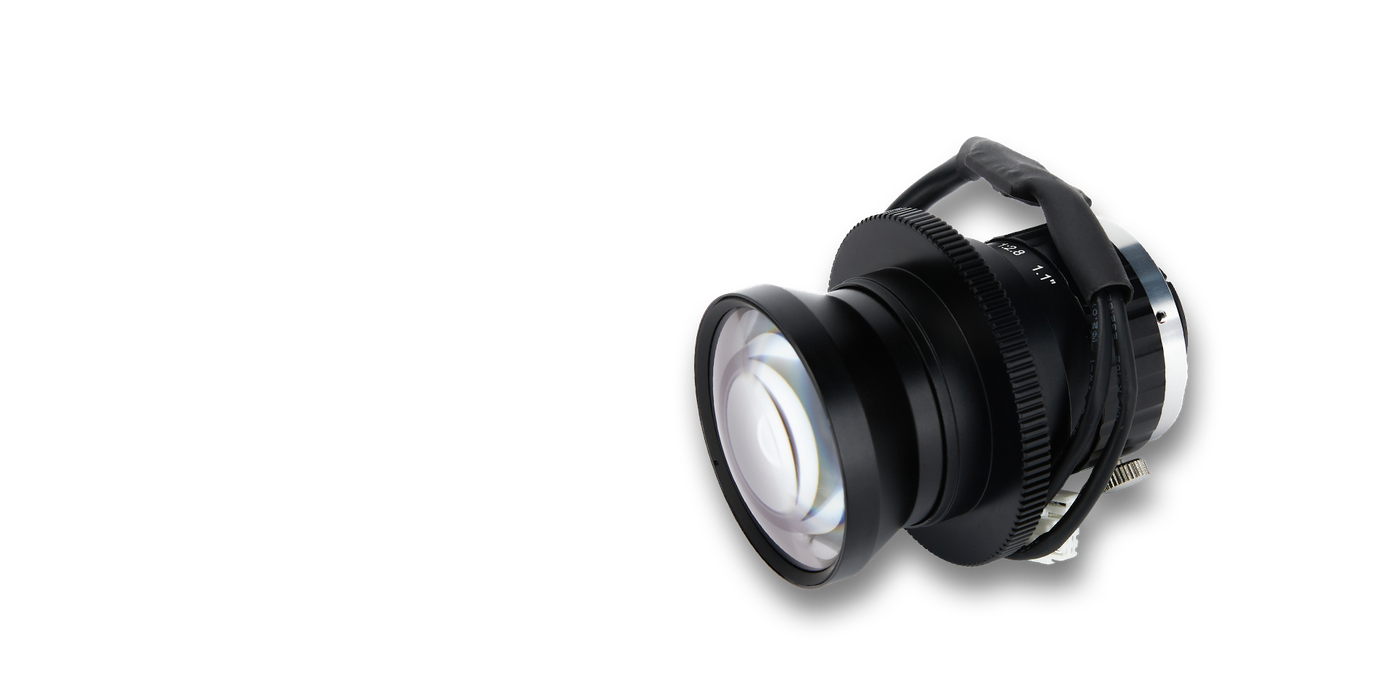

FA1216M6 12mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
12 mmFocal Length
1.1”Sensor Size
20 MPResolution
20MPResolving Power
C-MountMount
2.8-22Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA1216M6.
- Dimensionsφ74.3×71.3
- Filter Thread/
- MountC-Mount
Key Specifications
| Focal Length | 12 mm |
| Sensor Size | 1.1” |
| Resolution | 20 MP |
| Resolving Power | 20MP |
| Mount | C-Mount |
| Aperture | 2.8-22 |
| MOD | 0.1m、0.103X |
| Filter Thread | / |
| Field of View | 2/3"视场角Angle 38.9°×29.6°; 1"视场角Angle 54.8°×42.3°; 1.1"视场角Angle 57°×45° |
| Distortion | ﹤1.5% |
| Dimensions | φ74.3×71.3 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether FA1216M6 fits, or recommend a better match.
