FA0615A

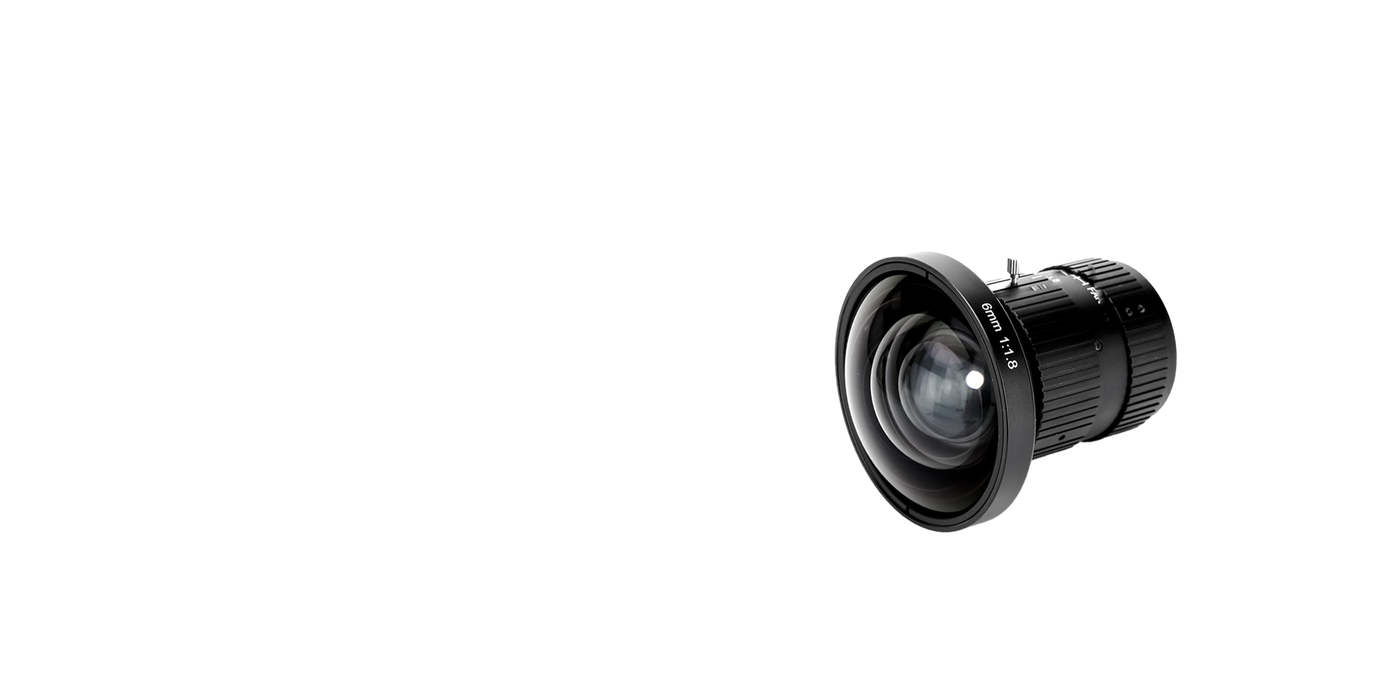

FA0615A 6mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
6 mmFocal Length
1.1”Sensor Size
20 MPResolution
20MPResolving Power
C-MountMount
1.8-16Aperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA0615A.
- Dimensionsφ66×77.8（max）
- Weight350
- MountC-Mount
Key Specifications
| Focal Length | 6 mm |
| Sensor Size | 1.1” |
| Resolution | 20 MP |
| Resolving Power | 20MP |
| Mount | C-Mount |
| Aperture | 1.8-16 |
| MOD | 0.1m、0.0498X |
| Field of View | 2/3"视场角Angle 73.3°×57.5°; 1"视场角Angle 95.4°×78.4°; 1.1"视场角Angle 104.9°×86.2° |
| Distortion | ﹤2.5% |
| Dimensions | φ66×77.8（max） |
| Weight | 350 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether FA0615A fits, or recommend a better match.
