FA0401C

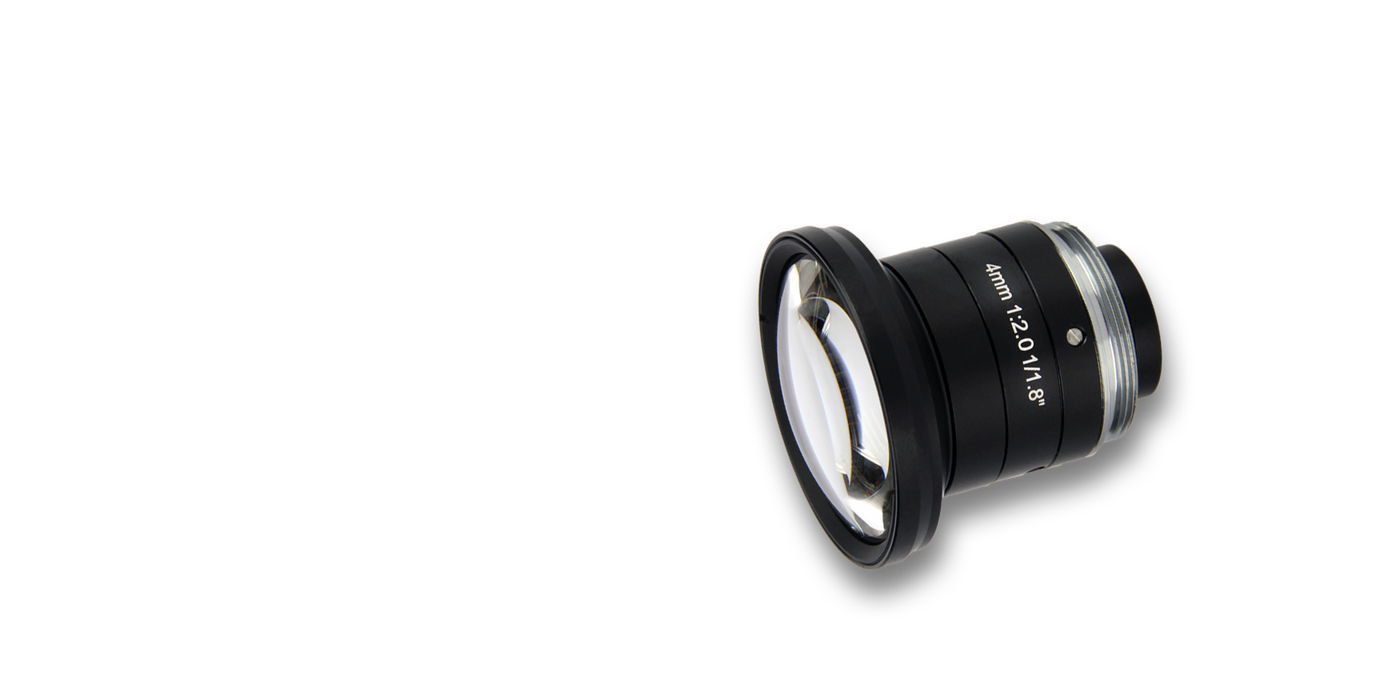

FA0401C 4mm Machine Vision Lens
Fixed focal lenses for automation, positioning, code reading and general inspection.
4 mmFocal Length
1/1.8”Sensor Size
5 MPResolution
5MPResolving Power
C-MountMount
2.0-CAperture
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of FA0401C.
- Dimensionsφ38.2×27.9
- Weight58
- MountC-Mount
Key Specifications
| Focal Length | 4 mm |
| Sensor Size | 1/1.8” |
| Resolution | 5 MP |
| Resolving Power | 5MP |
| Mount | C-Mount |
| Aperture | 2.0-C |
| MOD | 0.1m、0.037X |
| Field of View | 1/1.8"视场角Angle 82.9°×66.5°; 1/2.5"视场角Angle 70.7°×56.7°; 1/3"视场角Angle 61.1°×47.5° |
| Distortion | ﹤0.5% |
| Dimensions | φ38.2×27.9 |
| Weight | 58 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether FA0401C fits, or recommend a better match.
