ZM0434A

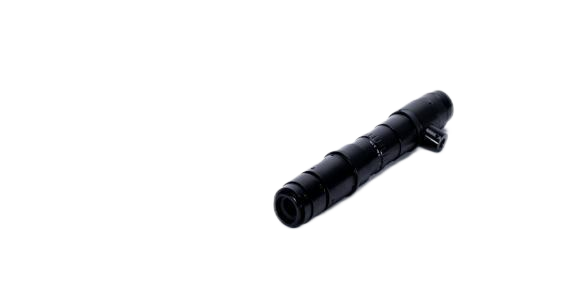

ZM0434A Microscope Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
0.42-3.15Magnification
φ6.3Sensor Size
C-MountMount
69.5MOD
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of ZM0434A.
- MountC-Mount
Key Specifications
| Magnification | 0.42-3.15 |
| Sensor Size | φ6.3 |
| Mount | C-Mount |
| MOD | 69.5 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether ZM0434A fits, or recommend a better match.
