TC1105M

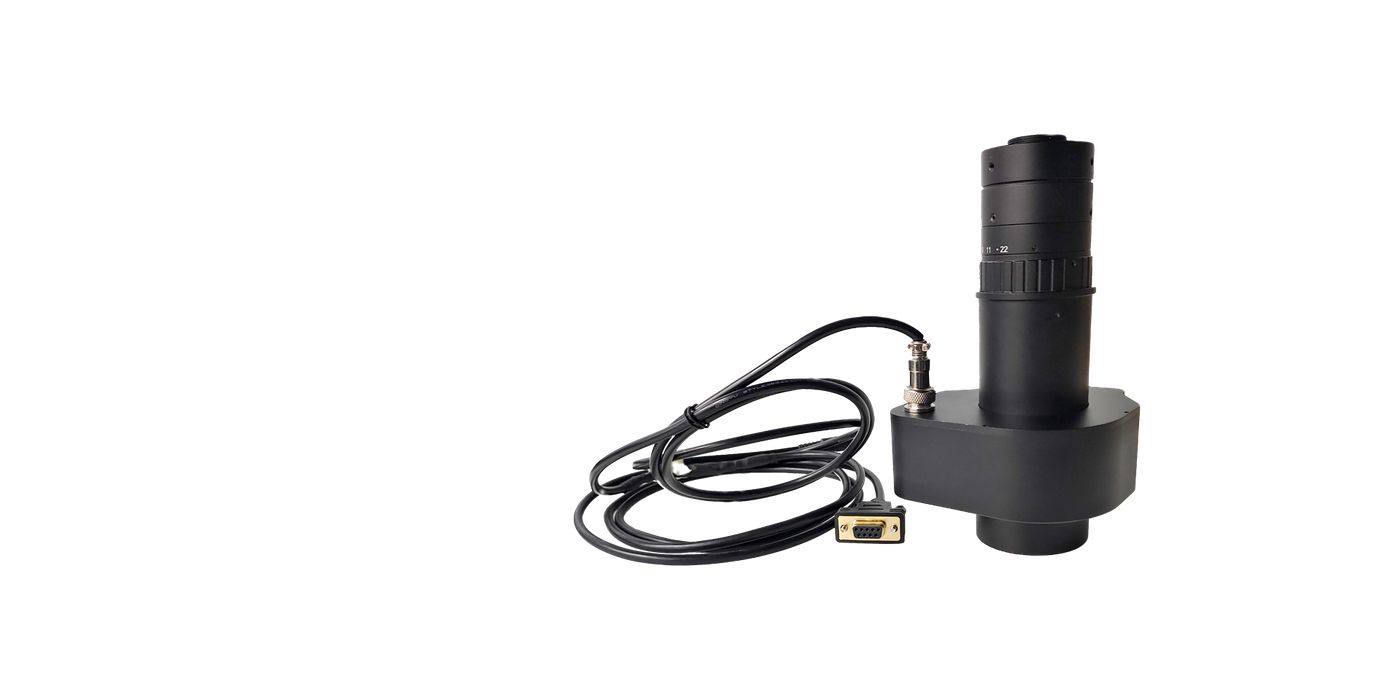

TC1105M Telecentric Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
0.5Magnification
1.1”Sensor Size
C-MountMount
5.6-22Aperture
108.4±8Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of TC1105M.
- MountC-Mount
Key Specifications
| Magnification | 0.5 |
| Sensor Size | 1.1” |
| Mount | C-Mount |
| Aperture | 5.6-22 |
| Working Distance | 108.4±8 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether TC1105M fits, or recommend a better match.
