RF3602A

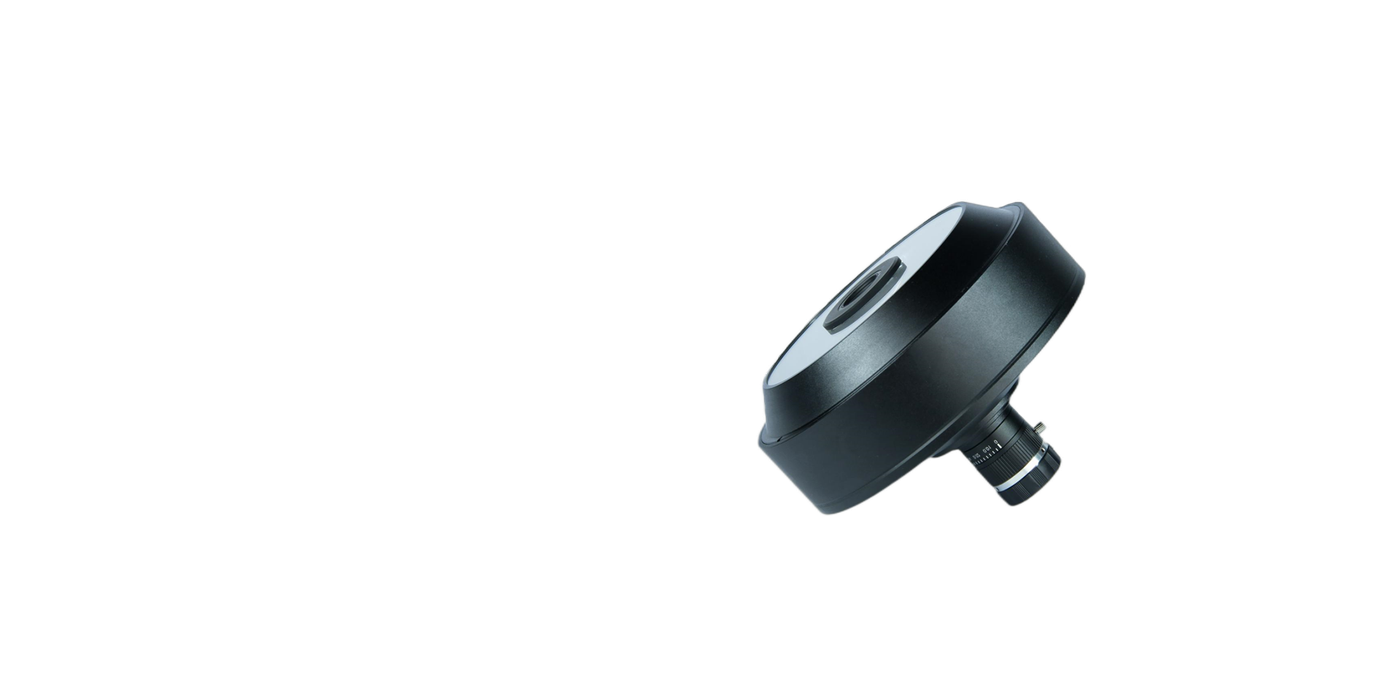

RF3602A Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
1/1.8”Sensor Size
C-MountMount
8.0-16Aperture
9-45.4Working Distance
φ136.9×99.04Dimensions
769Weight
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of RF3602A.
- Dimensionsφ136.9×99.04
- Weight769
- MountC-Mount
Key Specifications
| Sensor Size | 1/1.8” |
| Mount | C-Mount |
| Aperture | 8.0-16 |
| Working Distance | 9-45.4 |
| Dimensions | φ136.9×99.04 |
| Weight | 769 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether RF3602A fits, or recommend a better match.
