RF3601A

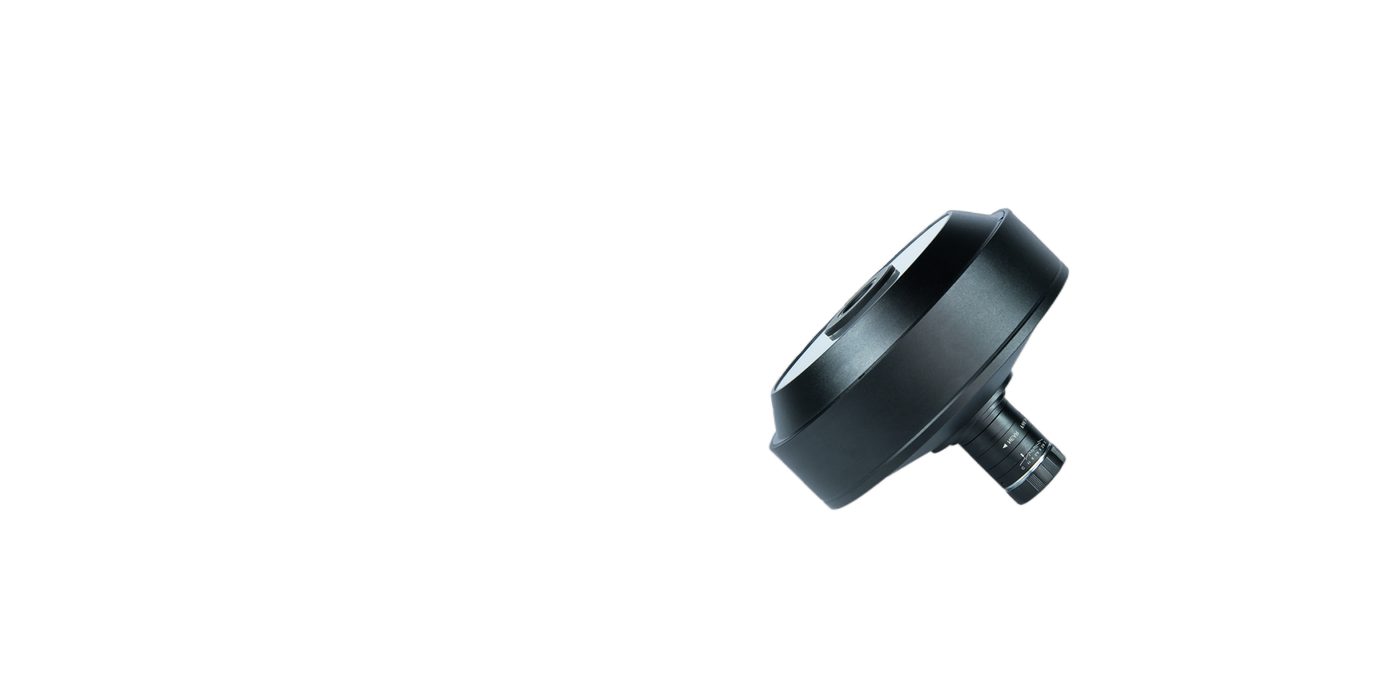

RF3601A Machine Vision Lens
UV, SWIR, S-mount, ITS and fully custom optical designs.
1/3”Sensor Size
C-MountMount
6.0-16Aperture
19-46.2Working Distance
φ136.9×97.05Dimensions
764Weight
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of RF3601A.
- Dimensionsφ136.9×97.05
- Weight764
- MountC-Mount
Key Specifications
| Sensor Size | 1/3” |
| Mount | C-Mount |
| Aperture | 6.0-16 |
| Working Distance | 19-46.2 |
| Dimensions | φ136.9×97.05 |
| Weight | 764 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether RF3601A fits, or recommend a better match.
