MV11601A

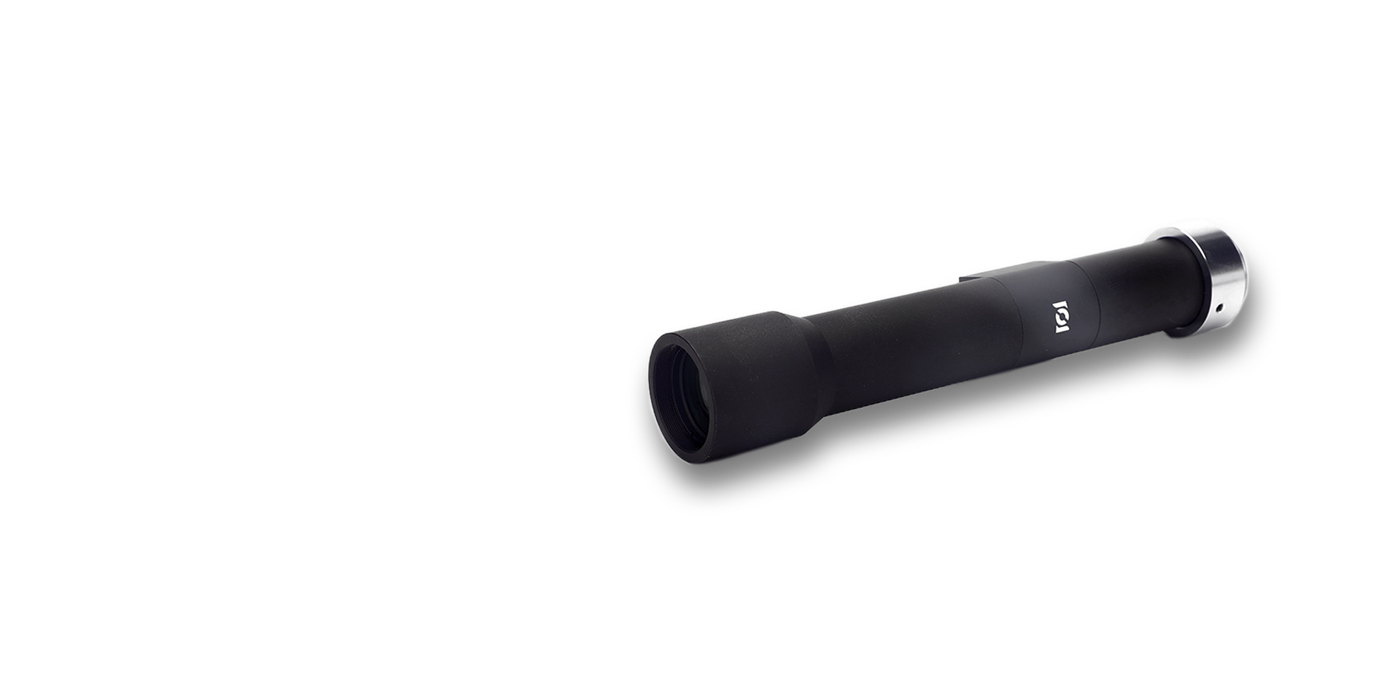

MV11601A Telecentric Lens
Bi-telecentric optics for dimensional measurement with no perspective error.
6Magnification
2/3”Sensor Size
3.95Resolving Power
C-MountMount
35Aperture
110Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MV11601A.
- Dimensionsφ30×161.85
- Weight166
- MountC-Mount
Key Specifications
| Magnification | 6 |
| Sensor Size | 2/3” |
| Resolving Power | 3.95 |
| Mount | C-Mount |
| Aperture | 35 |
| Working Distance | 110 |
| Field of View | 2/3"FOV(D×H×V) 1.83×1.46×1.1 |
| Distortion | <0.02% |
| Dimensions | φ30×161.85 |
| Weight | 166 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
