MV11301B

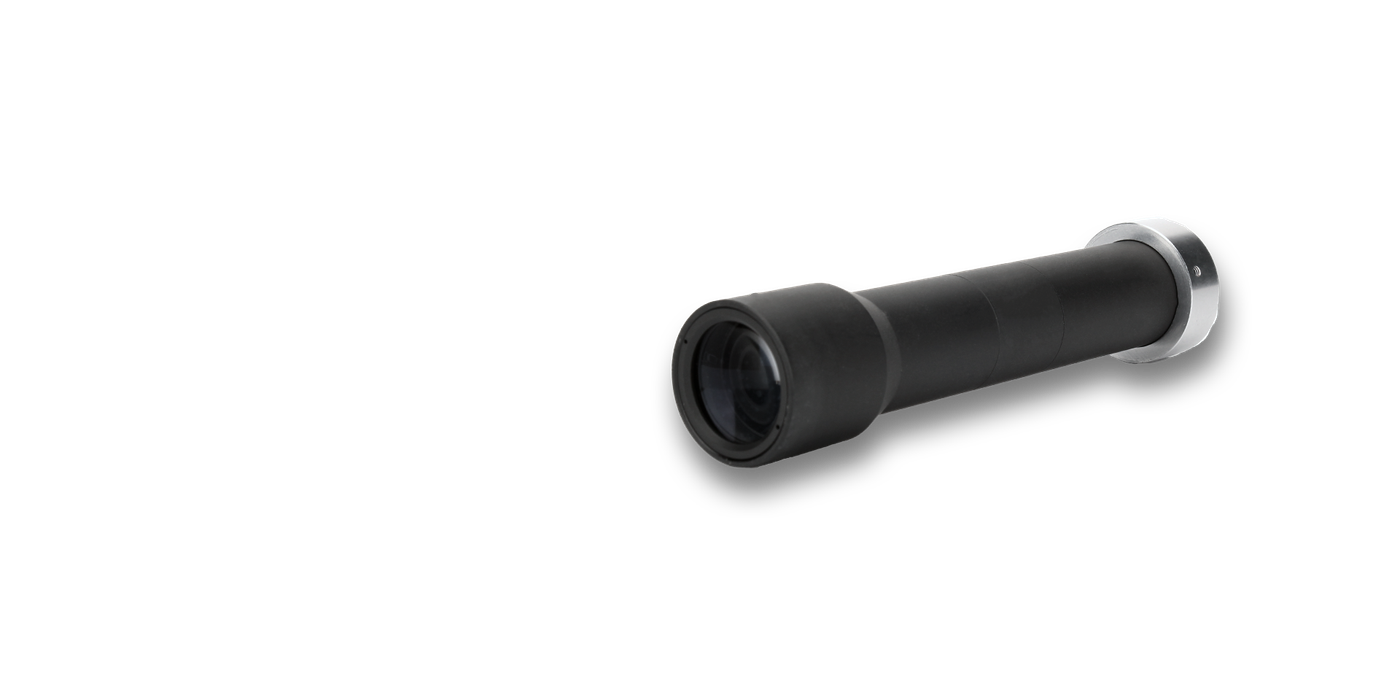

MV11301B Telecentric Lens
Bi-telecentric optics for dimensional measurement with no perspective error.
3Magnification
2/3”Sensor Size
3.95Resolving Power
C-MountMount
17.6Aperture
110Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MV11301B.
- Dimensionsφ30×128.2
- MountC-Mount
Key Specifications
| Magnification | 3 |
| Sensor Size | 2/3” |
| Resolving Power | 3.95 |
| Mount | C-Mount |
| Aperture | 17.6 |
| Working Distance | 110 |
| Field of View | 2/3"FOV(D×H×V) 3.7×2.9×2.2 |
| Distortion | <0.17% |
| Dimensions | φ30×128.2 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether MV11301B fits, or recommend a better match.
