MS9015M1

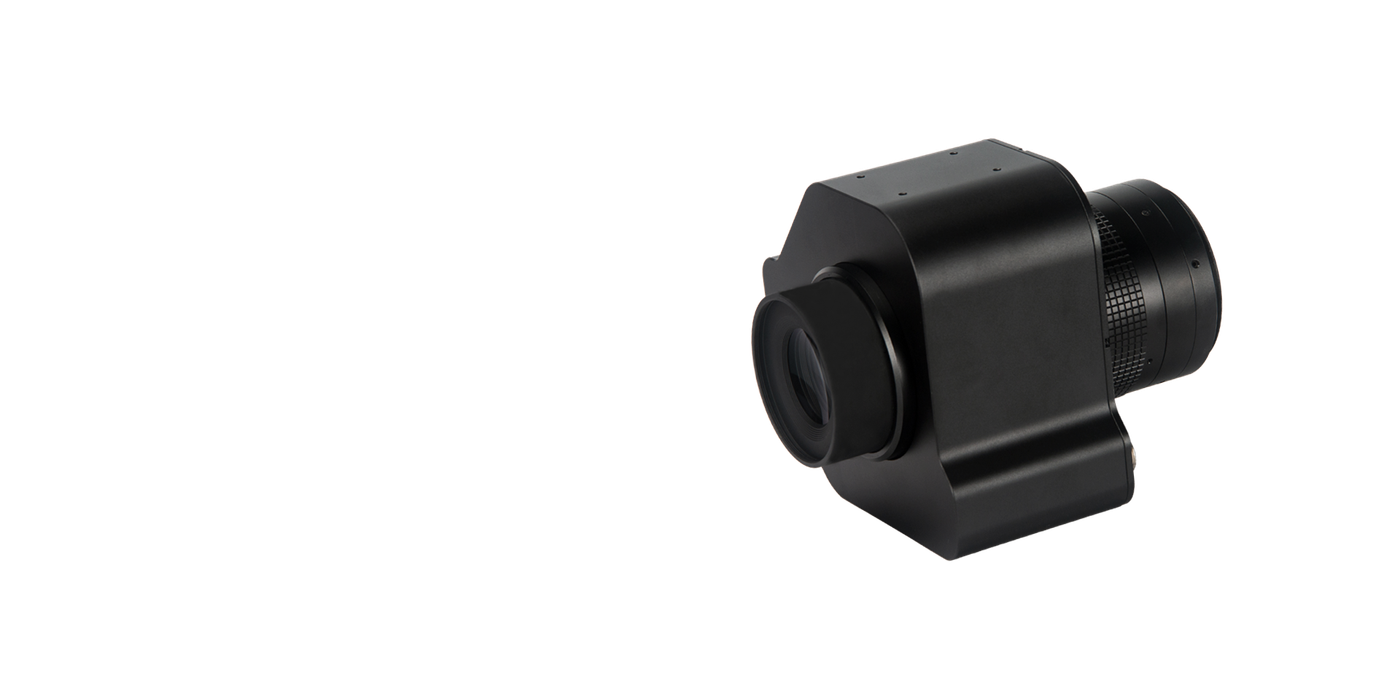

MS9015M1 90mm Large Format Lens
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
90 mmFocal Length
0.02x-0.57xMagnification
φ67Sensor Size
150 MPResolution
150MPResolving Power
M72×P0.75Mount
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MS9015M1.
- Filter ThreadM62×P0.75
- MountM72×P0.75
Key Specifications
| Focal Length | 90 mm |
| Magnification | 0.02x-0.57x |
| Sensor Size | φ67 |
| Resolution | 150 MP |
| Resolving Power | 150MP |
| Mount | M72×P0.75 |
| Aperture | 4.8-32 |
| Working Distance | 495.7 |
| Filter Thread | M62×P0.75 |
| Distortion | ﹤0.1% |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
