MS5515A

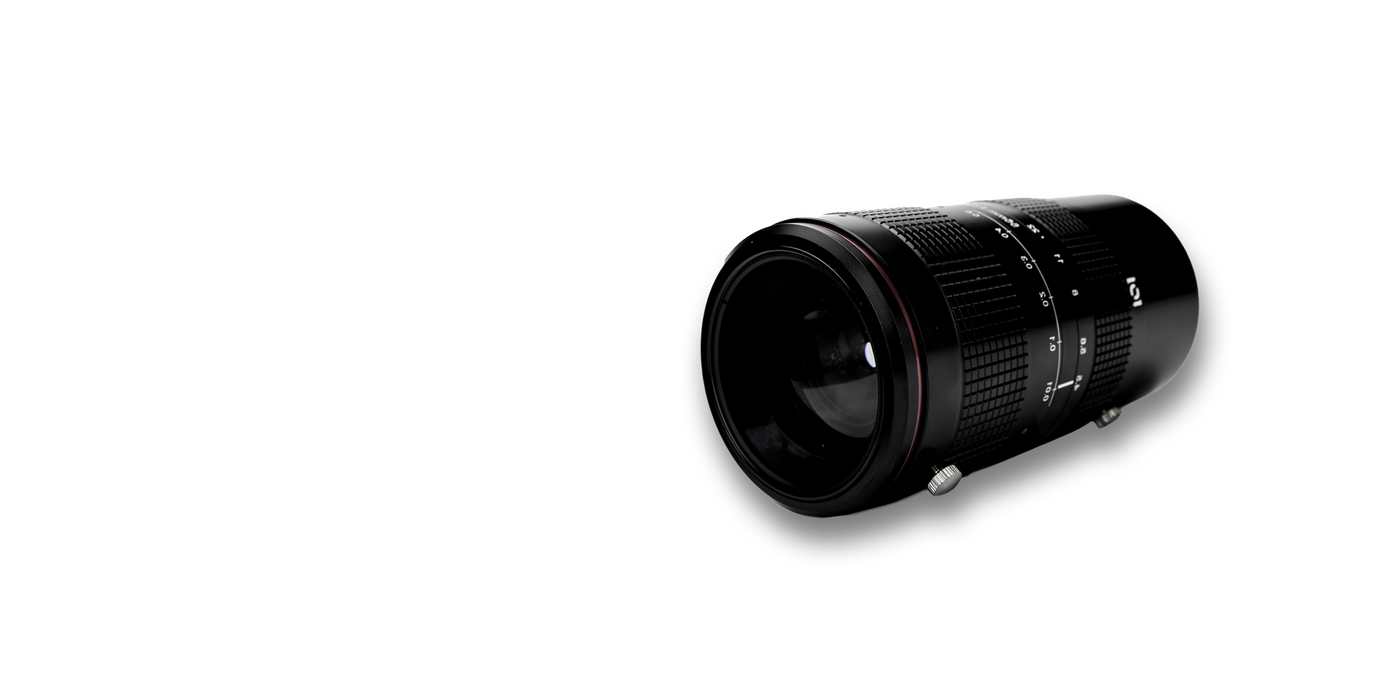

MS5515A 55mm Large Format Lens
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
55 mmFocal Length
0.01x-0.5xMagnification
φ67Sensor Size
151 MPResolution
151MPResolving Power
M72×P0.75Mount
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MS5515A.
- Dimensionsφ80.2×（179.5-155.5）
- MountM72×P0.75
Key Specifications
| Focal Length | 55 mm |
| Magnification | 0.01x-0.5x |
| Sensor Size | φ67 |
| Resolution | 151 MP |
| Resolving Power | 151MP |
| Mount | M72×P0.75 |
| Aperture | 4.5-22 |
| Working Distance | 280.6 |
| Distortion | ﹤0.05% |
| Dimensions | φ80.2×（179.5-155.5） |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
