MS4505A

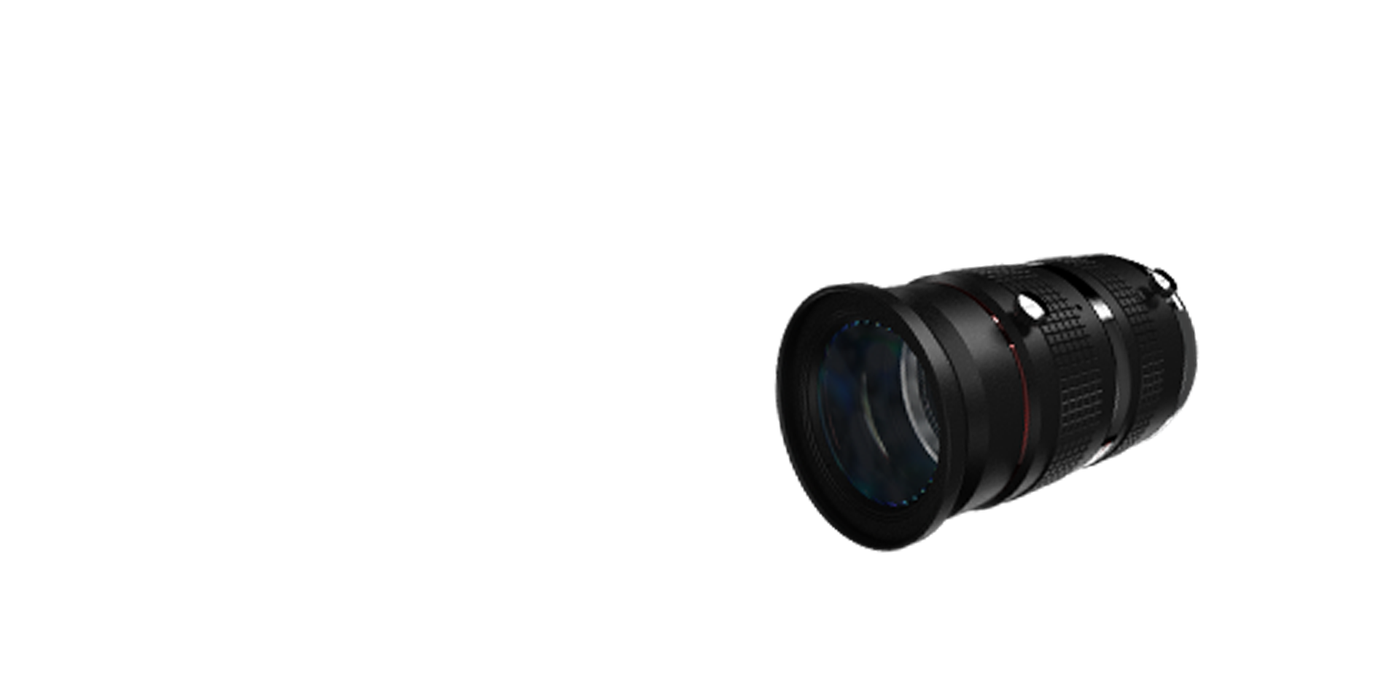

MS4505A 45mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
45 mmFocal Length
0.03x-0.35xMagnification
M72×P0.75Mount
4.0-16Aperture
223.5Working Distance
M62×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MS4505A.
- Dimensionsφ64×（93.1-115.67）
- Filter ThreadM62×P0.75
- MountM72×P0.75
Key Specifications
| Focal Length | 45 mm |
| Magnification | 0.03x-0.35x |
| Mount | M72×P0.75 |
| Aperture | 4.0-16 |
| Working Distance | 223.5 |
| Filter Thread | M62×P0.75 |
| Distortion | ﹤0.5% |
| Dimensions | φ64×（93.1-115.67） |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
