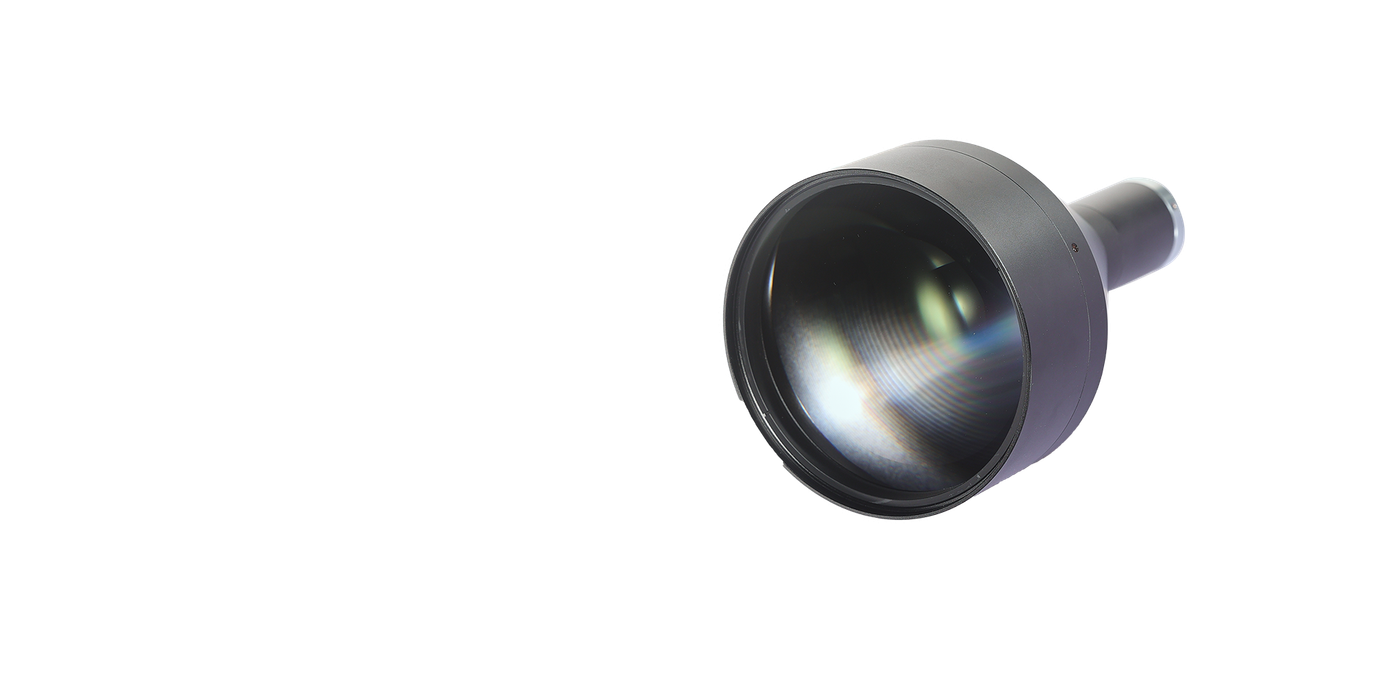

MH27021D Telecentric Lens
Bi-telecentric optics for dimensional measurement with no perspective error.
0.2Magnification
1.1”Sensor Size
29.17Resolving Power
C-MountMount
8.8Aperture
275Working Distance
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MH27021D.
- Dimensionsφ80×181.4
- MountC-Mount
Key Specifications
| Magnification | 0.2 |
| Sensor Size | 1.1” |
| Resolving Power | 29.17 |
| Mount | C-Mount |
| Aperture | 8.8 |
| Working Distance | 275 |
| Field of View | FOV(D×H×V) 88×70.8×50.8 |
| Distortion | <0.05% |
| Dimensions | φ80×181.4 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
