MF9005A

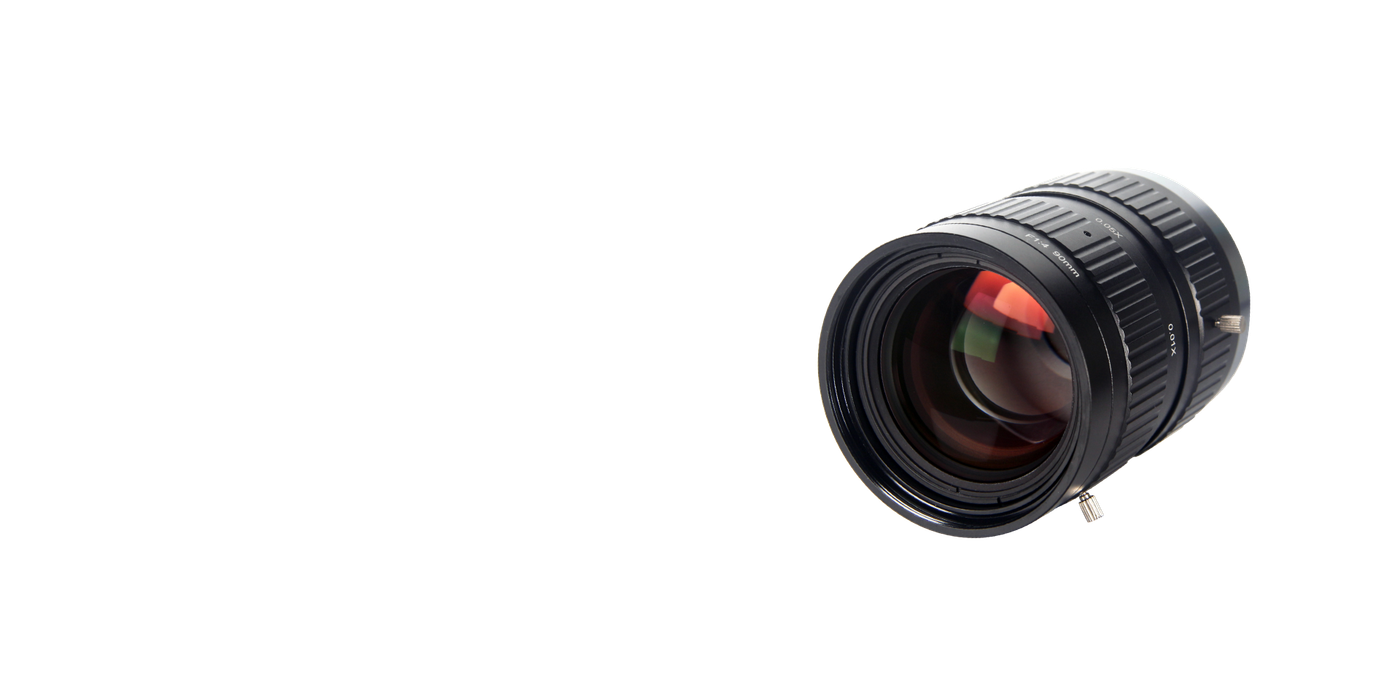

MF9005A 90mm Large Format Lens
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
90 mmFocal Length
0.01x-0.1xMagnification
φ43.2Sensor Size
65 MPResolution
65MPResolving Power
F-MountMount
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MF9005A.
- Dimensionsφ68×88.45
- Weight633
- Filter ThreadM62×P0.75
- MountF-Mount
Key Specifications
| Focal Length | 90 mm |
| Magnification | 0.01x-0.1x |
| Sensor Size | φ43.2 |
| Resolution | 65 MP |
| Resolving Power | 65MP |
| Mount | F-Mount |
| Aperture | 4.0-16 |
| Working Distance | 1985 |
| Filter Thread | M62×P0.75 |
| Distortion | ﹤0.01% |
| Dimensions | φ68×88.45 |
| Weight | 633 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether MF9005A fits, or recommend a better match.
