MF9001A

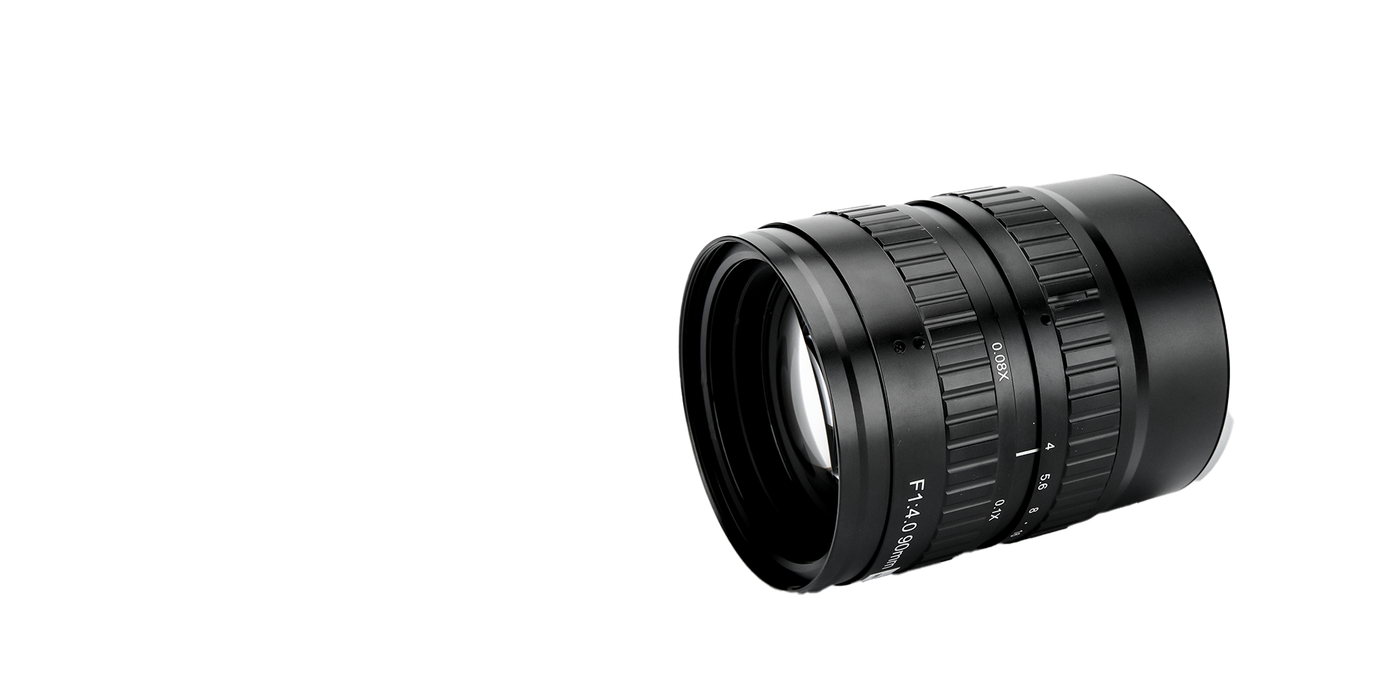

MF9001A 90mm Large Format Lens
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
90 mmFocal Length
0.08x-0.14xMagnification
φ64Sensor Size
65 MPResolution
65MPResolving Power
F-MountMount
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MF9001A.
- Dimensionsφ72×91.05
- Weight613.1
- Filter ThreadM67×P0.75
- MountF-Mount
Key Specifications
| Focal Length | 90 mm |
| Magnification | 0.08x-0.14x |
| Sensor Size | φ64 |
| Resolution | 65 MP |
| Resolving Power | 65MP |
| Mount | F-Mount |
| Aperture | 4.0-16 |
| Working Distance | 985.9 |
| Filter Thread | M67×P0.75 |
| Distortion | 0.01% |
| Dimensions | φ72×91.05 |
| Weight | 613.1 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether MF9001A fits, or recommend a better match.
