MF8003A

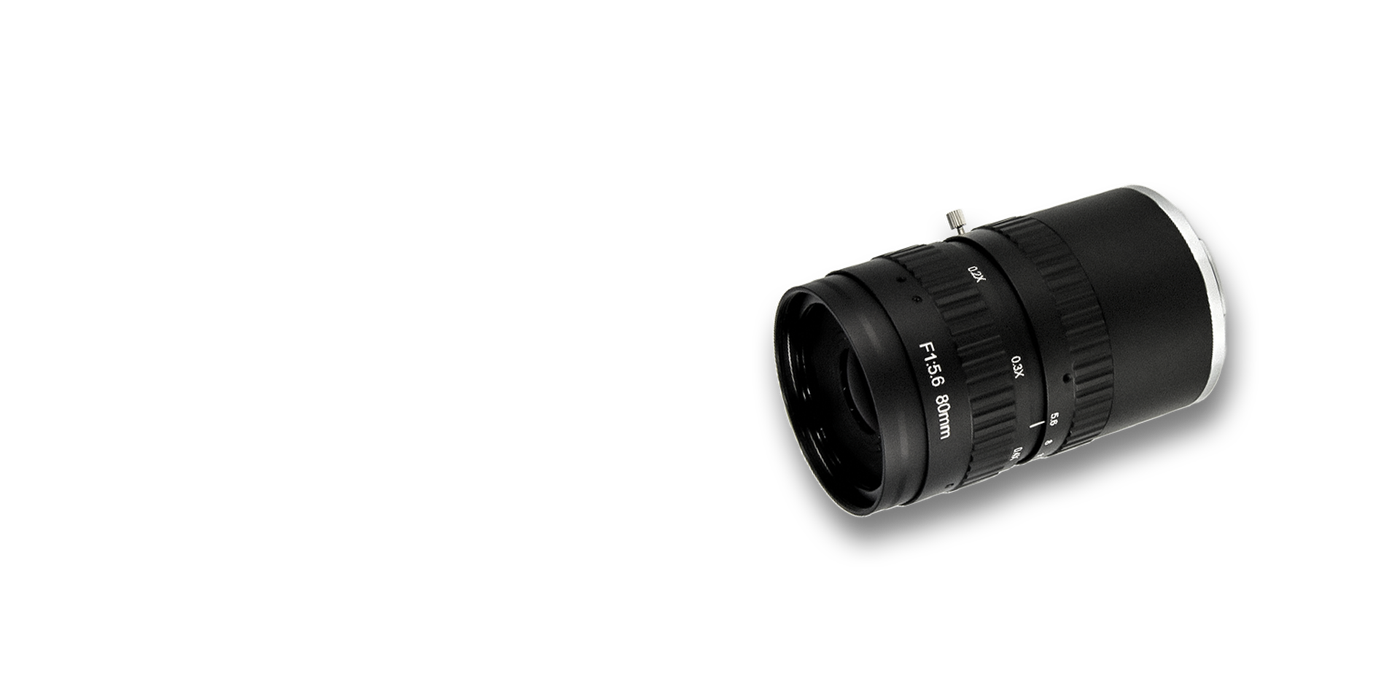

MF8003A 80mm Large Format Lens
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
80 mmFocal Length
0.2x-0.4xMagnification
φ58Sensor Size
29 MPResolution
29MPResolving Power
F-MountMount
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MF8003A.
- Dimensionsφ57×91
- Weight312
- Filter ThreadM52×P0.75
- MountF-Mount
Key Specifications
| Focal Length | 80 mm |
| Magnification | 0.2x-0.4x |
| Sensor Size | φ58 |
| Resolution | 29 MP |
| Resolving Power | 29MP |
| Mount | F-Mount |
| Aperture | 5.6-32 |
| Working Distance | 306.2 |
| Filter Thread | M52×P0.75 |
| Distortion | ﹤0.01% |
| Dimensions | φ57×91 |
| Weight | 312 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether MF8003A fits, or recommend a better match.
