MF5001C

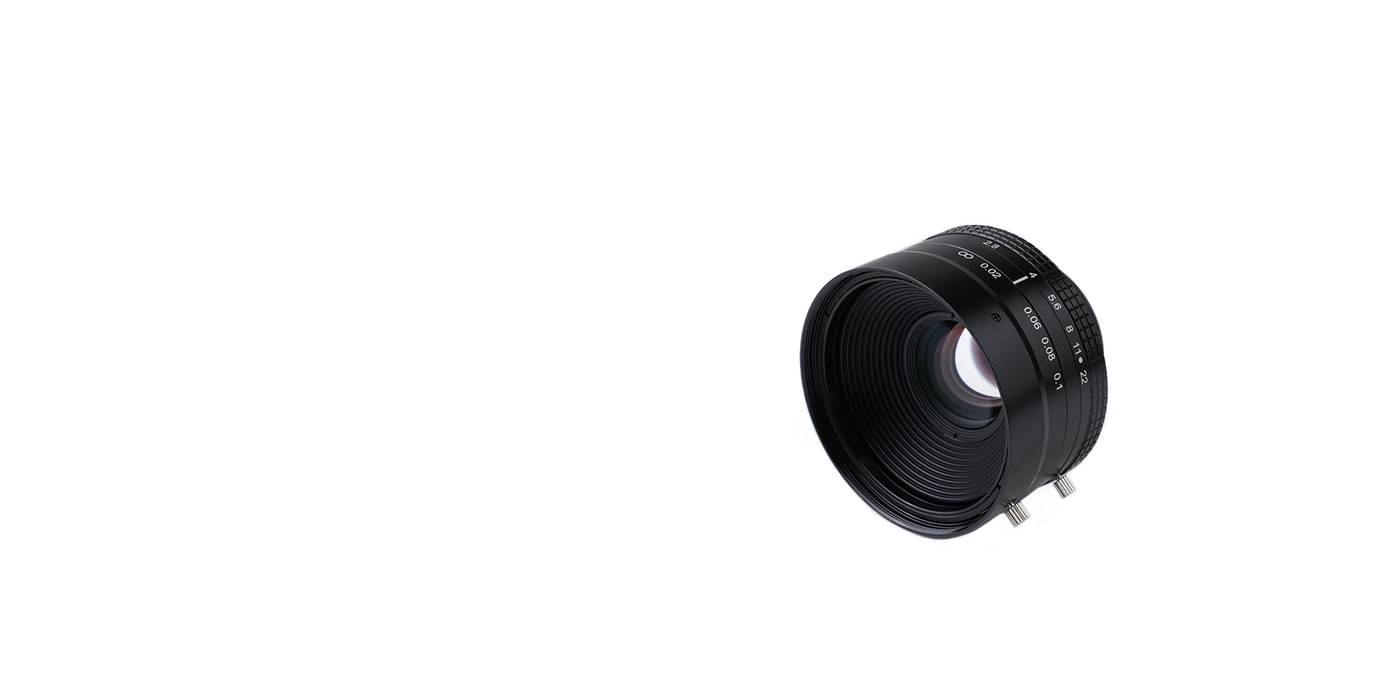

MF5001C 50mm Large Format Lens
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
50 mmFocal Length
0.02x-0.1xMagnification
φ43Sensor Size
29 MPResolution
29MPResolving Power
F-MountMount
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MF5001C.
- Dimensionsφ64×35.6
- Weight240
- Filter ThreadM62×P0.75
- MountF-Mount
Key Specifications
| Focal Length | 50 mm |
| Magnification | 0.02x-0.1x |
| Sensor Size | φ43 |
| Resolution | 29 MP |
| Resolving Power | 29MP |
| Mount | F-Mount |
| Aperture | 2.8-22 |
| Working Distance | 862.1 |
| Filter Thread | M62×P0.75 |
| Distortion | 0.2% |
| Dimensions | φ64×35.6 |
| Weight | 240 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether MF5001C fits, or recommend a better match.
