MF3502A

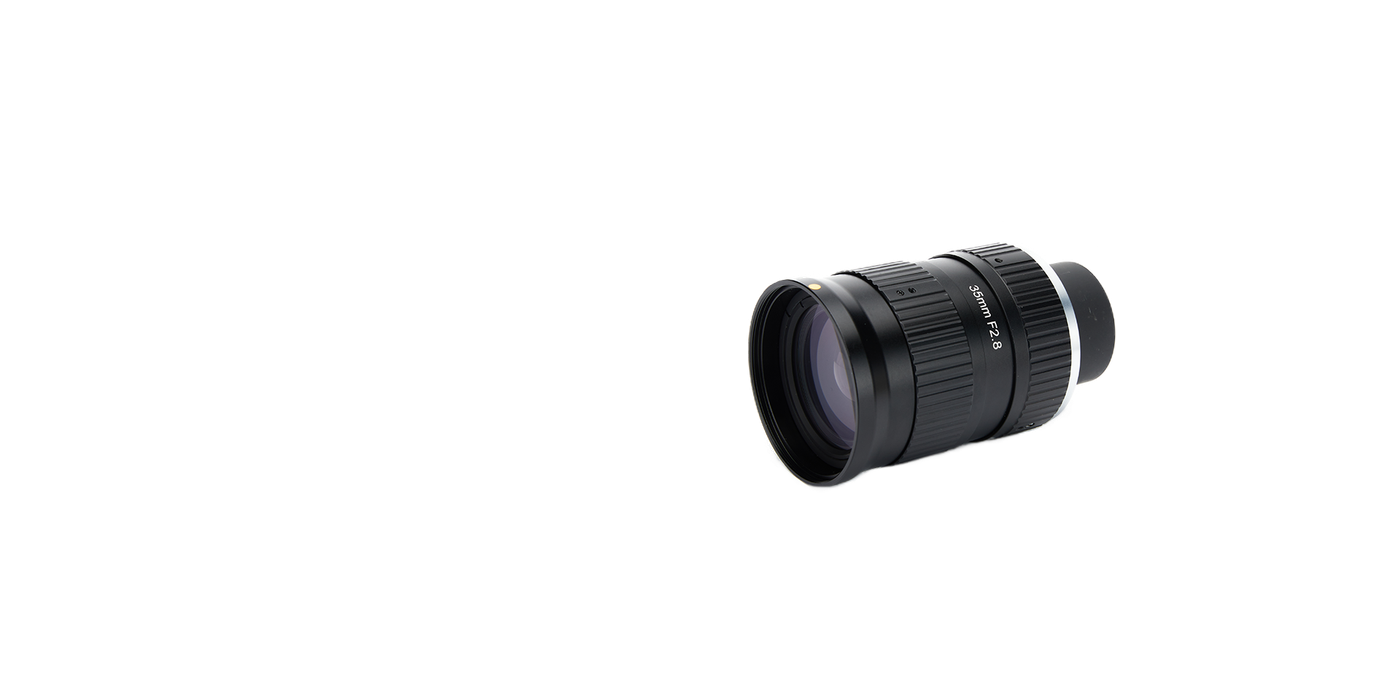

MF3502A 35mm Large Format Lens
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
35 mmFocal Length
0.05x-0.25xMagnification
φ45Sensor Size
29 MPResolution
29MPResolving Power
F-MountMount
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MF3502A.
- Dimensionsφ61×81.5
- Filter ThreadM58×P0.75
- MountF-Mount
Key Specifications
| Focal Length | 35 mm |
| Magnification | 0.05x-0.25x |
| Sensor Size | φ45 |
| Resolution | 29 MP |
| Resolving Power | 29MP |
| Mount | F-Mount |
| Aperture | 2.8-16 |
| Working Distance | 350.9 |
| Filter Thread | M58×P0.75 |
| Distortion | ﹤0.4% |
| Dimensions | φ61×81.5 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether MF3502A fits, or recommend a better match.
