MC5001M1

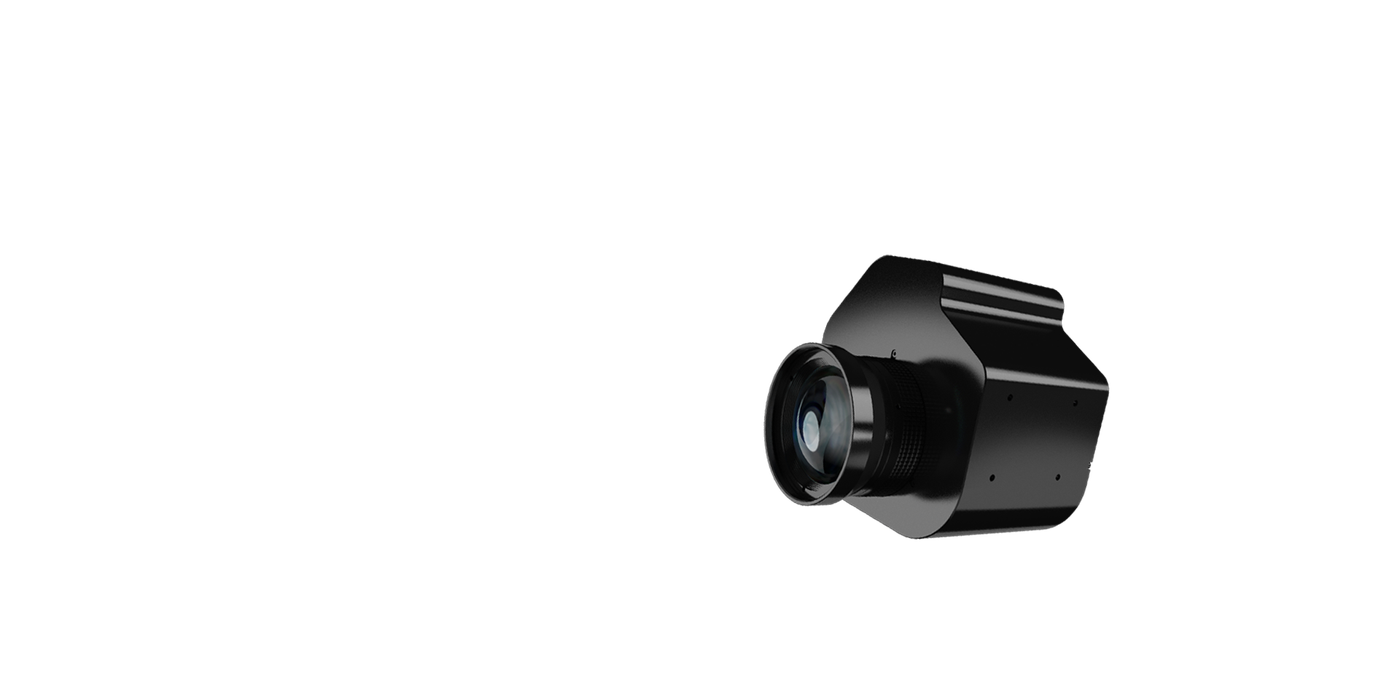

MC5001M1 50mm Large Format Lens
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
50 mmFocal Length
0.02x-0.5xMagnification
φ46Sensor Size
65 MPResolution
65MPResolving Power
M58×P0.75Mount
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MC5001M1.
- Filter ThreadM62×P0.75
- MountM58×P0.75
Key Specifications
| Focal Length | 50 mm |
| Magnification | 0.02x-0.5x |
| Sensor Size | φ46 |
| Resolution | 65 MP |
| Resolving Power | 65MP |
| Mount | M58×P0.75 |
| Aperture | 3.6-22 |
| Working Distance | 300 |
| Filter Thread | M62×P0.75 |
| Distortion | ﹤0.2% |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether MC5001M1 fits, or recommend a better match.
