MC3501A

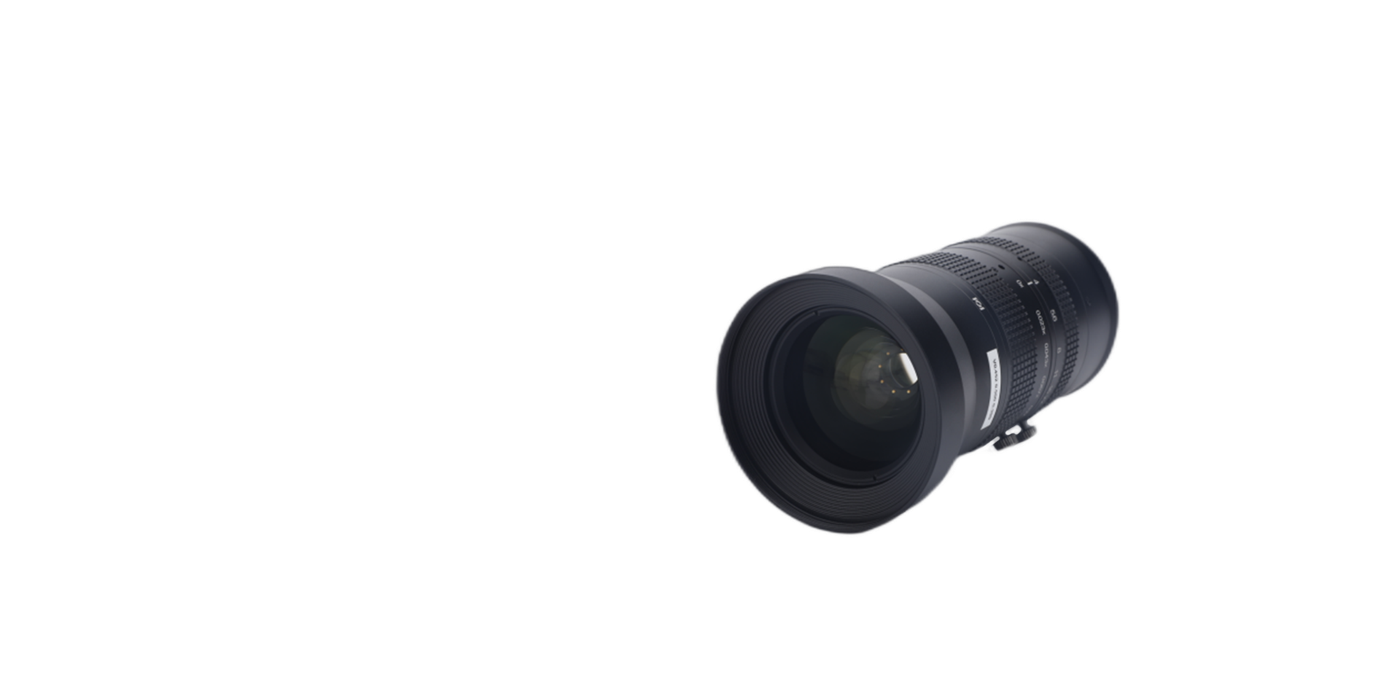

MC3501A 35mm Large Format Lens
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
35 mmFocal Length
0.001x-0.2xMagnification
φ42Sensor Size
65 MPResolution
65MPResolving Power
M58×P0.75Mount
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MC3501A.
- Dimensionsφ69.42×130.56
- Weight742
- Filter ThreadM67×P0.75
- MountM58×P0.75
Key Specifications
| Focal Length | 35 mm |
| Magnification | 0.001x-0.2x |
| Sensor Size | φ42 |
| Resolution | 65 MP |
| Resolving Power | 65MP |
| Mount | M58×P0.75 |
| Aperture | 4.0-22 |
| Working Distance | 500 |
| Filter Thread | M67×P0.75 |
| Distortion | ﹤0.7% |
| Dimensions | φ69.42×130.56 |
| Weight | 742 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
