MC2501A

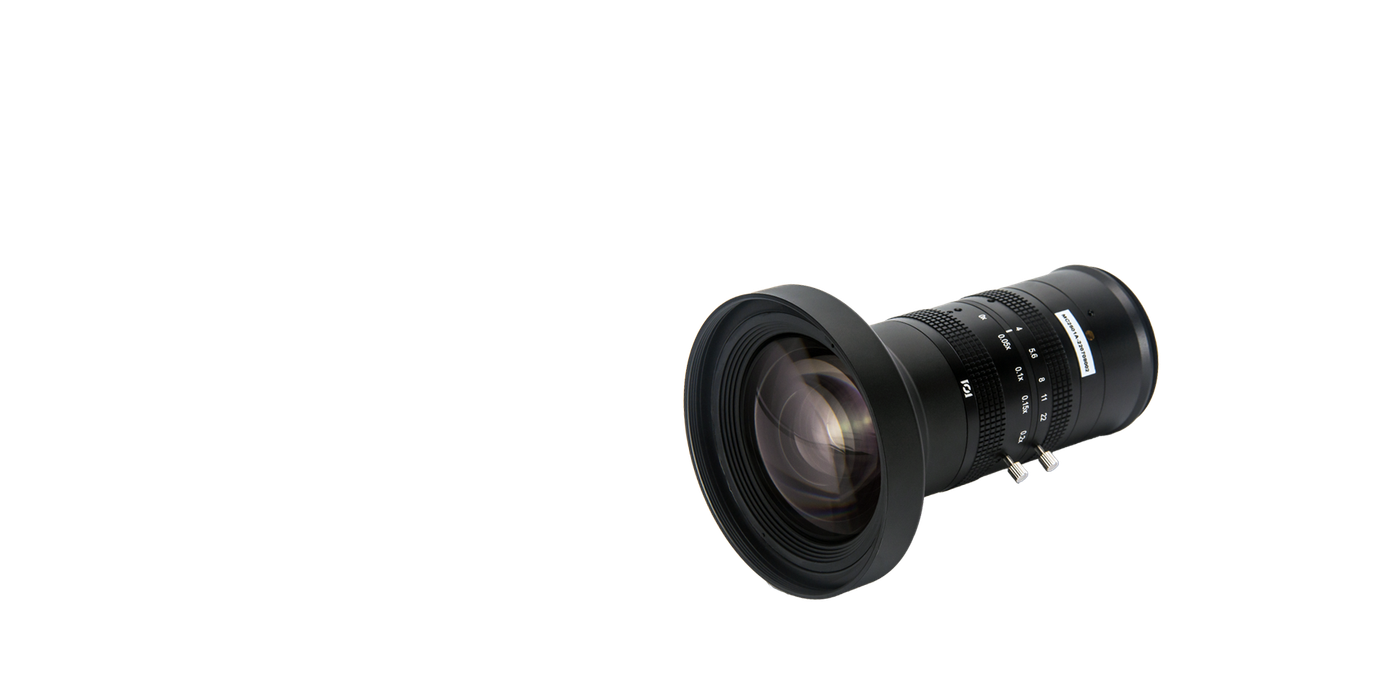

MC2501A 25mm Large Format Lens
High-resolution optics for 1.1", 1.2", 4/3" sensors and macro inspection.
25 mmFocal Length
0.001x-0.2xMagnification
φ46Sensor Size
65 MPResolution
65MPResolving Power
M58×P0.75Mount
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of MC2501A.
- Dimensionsφ98×139.09
- Filter ThreadM95×P1.0
- MountM58×P0.75
Key Specifications
| Focal Length | 25 mm |
| Magnification | 0.001x-0.2x |
| Sensor Size | φ46 |
| Resolution | 65 MP |
| Resolving Power | 65MP |
| Mount | M58×P0.75 |
| Aperture | 4.0-22 |
| Working Distance | 220 |
| Filter Thread | M95×P1.0 |
| Distortion | ﹤0.2% |
| Dimensions | φ98×139.09 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
