LS4105B

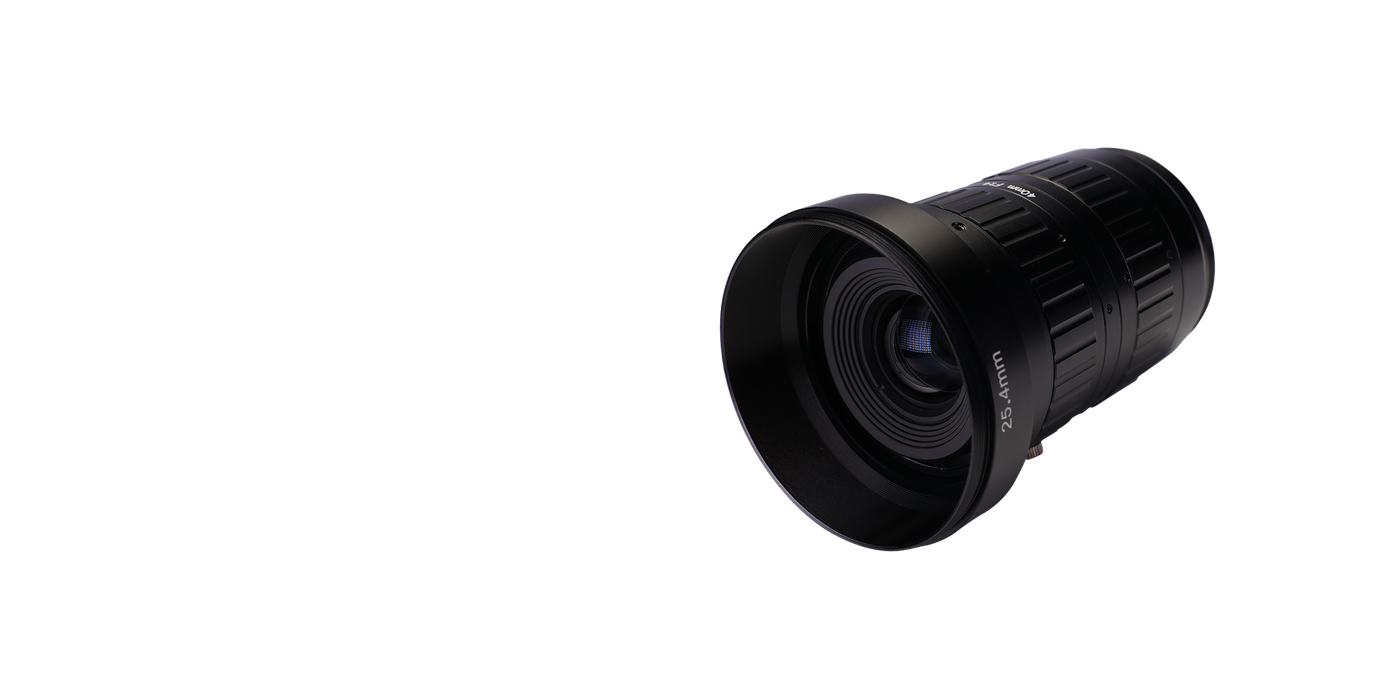

LS4105B 40mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
40 mmFocal Length
0.02-0.16Magnification
M72×P0.75Mount
4.0-22Aperture
818.8Working Distance
M72×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS4105B.
- Dimensionsφ62×71.5
- Weight983.3
- Filter ThreadM72×P0.75
- MountM72×P0.75
Key Specifications
| Focal Length | 40 mm |
| Magnification | 0.02-0.16 |
| Mount | M72×P0.75 |
| Aperture | 4.0-22 |
| Working Distance | 818.8 |
| Filter Thread | M72×P0.75 |
| Distortion | ﹤0.2% |
| Dimensions | φ62×71.5 |
| Weight | 983.3 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
