LS4010A

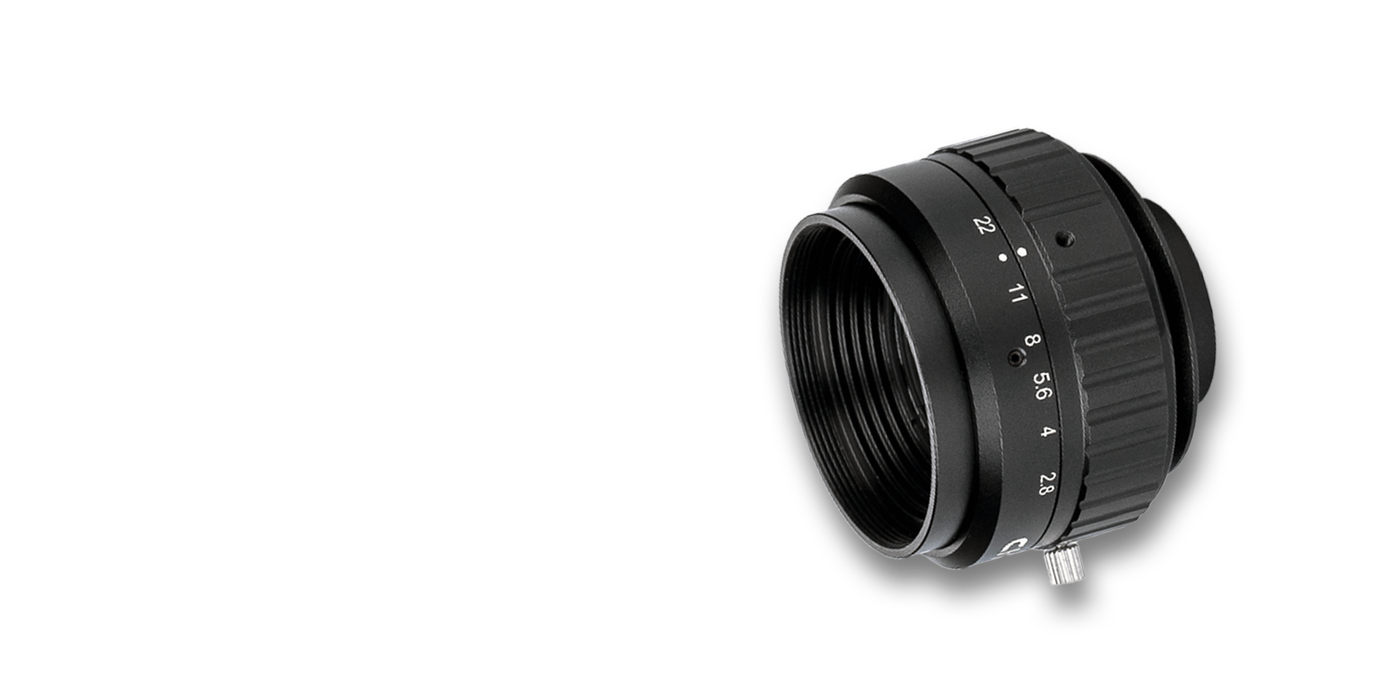

LS4010A 40mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
40 mmFocal Length
0.04-0.33Magnification
V-Mount（φ38）Mount
2.8-22Aperture
429.9Working Distance
M37×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS4010A.
- Weight110
- Filter ThreadM37×P0.75
- MountV-Mount（φ38）
Key Specifications
| Focal Length | 40 mm |
| Magnification | 0.04-0.33 |
| Mount | V-Mount（φ38） |
| Aperture | 2.8-22 |
| Working Distance | 429.9 |
| Filter Thread | M37×P0.75 |
| Distortion | 0.5% |
| Weight | 110 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether LS4010A fits, or recommend a better match.
