LS3508A

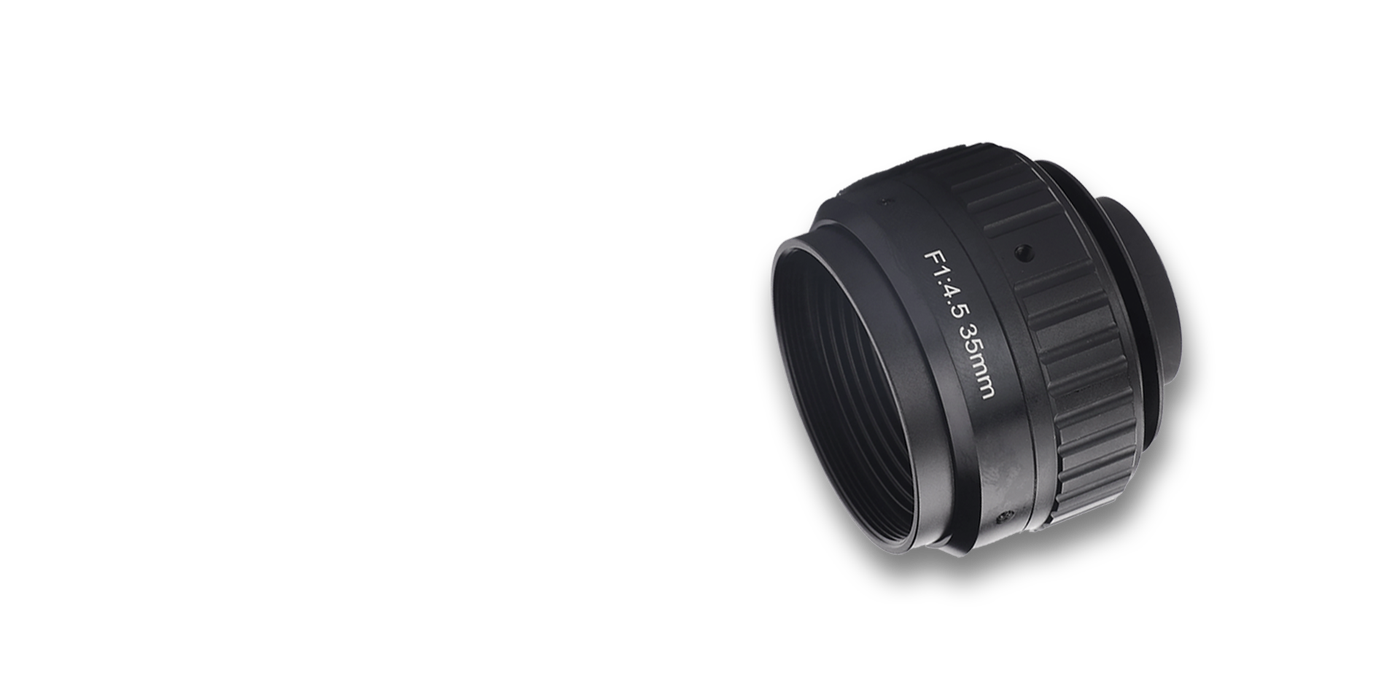

LS3508A 35mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
35 mmFocal Length
0.04-0.1Magnification
V-Mount（φ38）Mount
4.5-16Aperture
508.49Working Distance
M37×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS3508A.
- Weight105
- Filter ThreadM37×P0.75
- MountV-Mount（φ38）
Key Specifications
| Focal Length | 35 mm |
| Magnification | 0.04-0.1 |
| Mount | V-Mount（φ38） |
| Aperture | 4.5-16 |
| Working Distance | 508.49 |
| Filter Thread | M37×P0.75 |
| Distortion | ﹤0.01% |
| Weight | 105 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether LS3508A fits, or recommend a better match.
