LS2003C

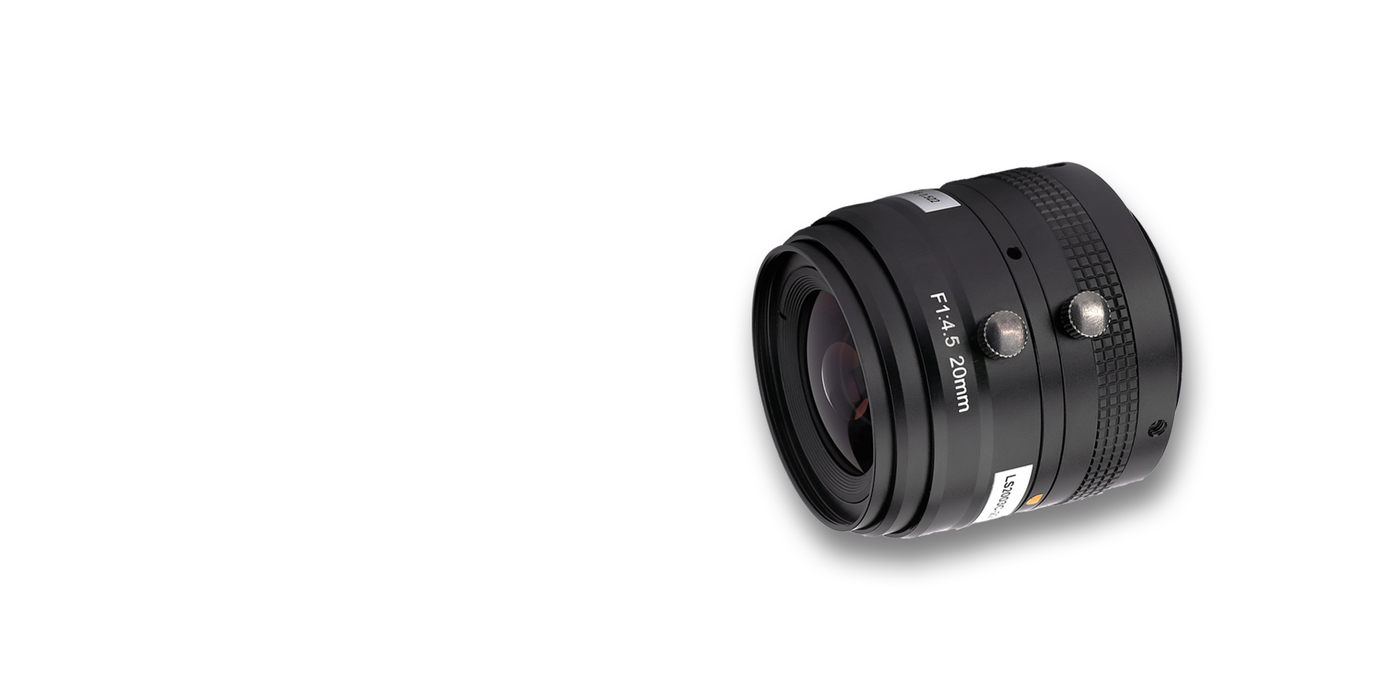

LS2003C 20mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
20 mmFocal Length
0.0358Magnification
M42×P1Mount
4.5-CAperture
557.4Working Distance
M43×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS2003C.
- Dimensionsφ52×（48.8-51.4）
- Weight234
- Filter ThreadM43×P0.75
- MountM42×P1
Key Specifications
| Focal Length | 20 mm |
| Magnification | 0.0358 |
| Mount | M42×P1 |
| Aperture | 4.5-C |
| Working Distance | 557.4 |
| Filter Thread | M43×P0.75 |
| Distortion | 0.2% |
| Dimensions | φ52×（48.8-51.4） |
| Weight | 234 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether LS2003C fits, or recommend a better match.
