LS1667B

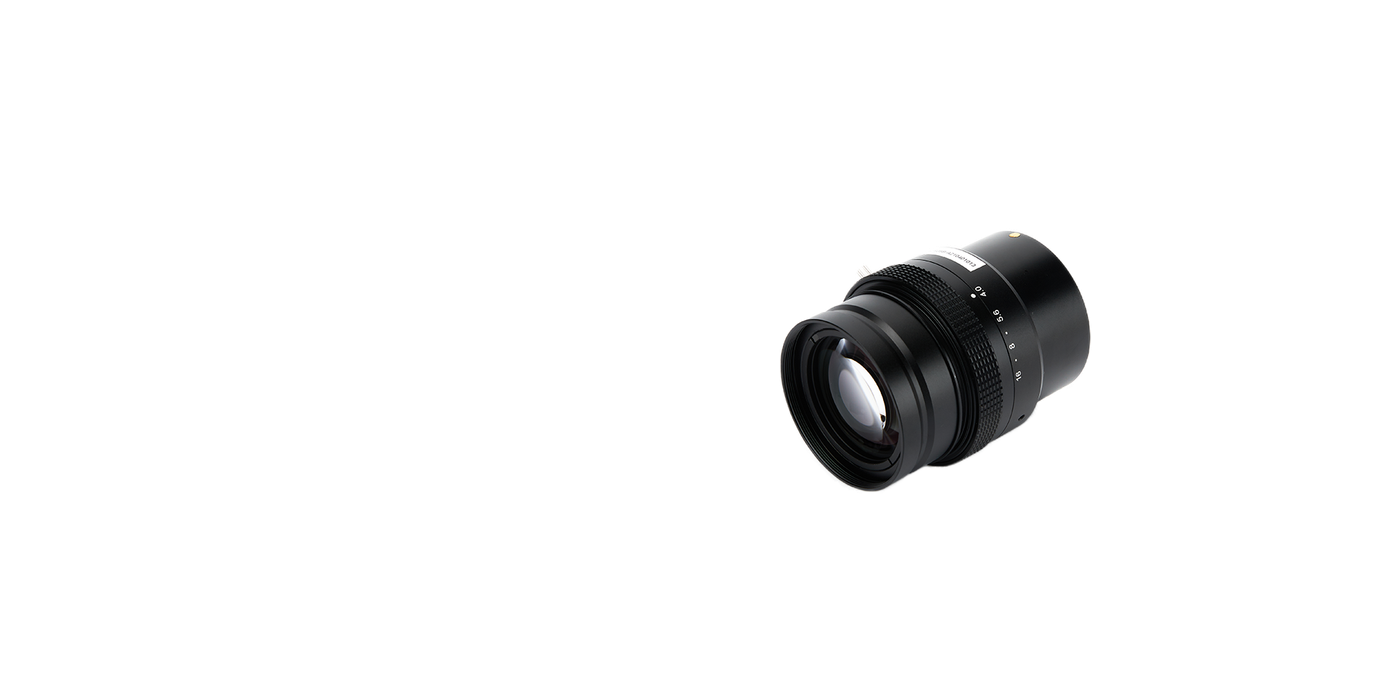

LS1667B 147.6mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
147.6 mmFocal Length
0.6-0.72Magnification
V-Mount（φ56）Mount
4.5-16Aperture
321.2Working Distance
M52×P0.75Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS1667B.
- Dimensionsφ61.1
- Filter ThreadM52×P0.75
- MountV-Mount（φ56）
Key Specifications
| Focal Length | 147.6 mm |
| Magnification | 0.6-0.72 |
| Mount | V-Mount（φ56） |
| Aperture | 4.5-16 |
| Working Distance | 321.2 |
| Filter Thread | M52×P0.75 |
| Distortion | 0.01% |
| Dimensions | φ61.1 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
