LS1626A

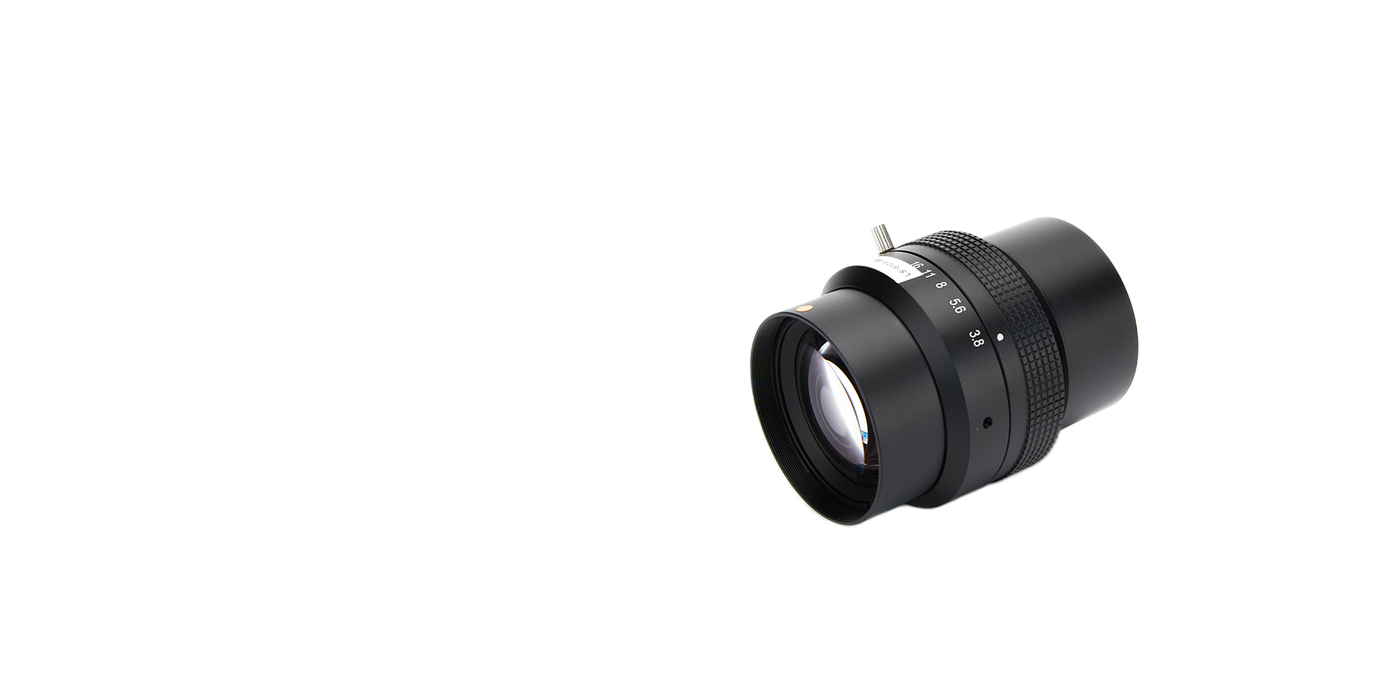

LS1626A 114mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
114 mmFocal Length
0.23-0.28Magnification
V-Mount（φ49）Mount
3.8-16Aperture
497.85Working Distance
M45×P0.5Filter Thread
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS1626A.
- Dimensionsφ55.7
- Weight334
- Filter ThreadM45×P0.5
- MountV-Mount（φ49）
Key Specifications
| Focal Length | 114 mm |
| Magnification | 0.23-0.28 |
| Mount | V-Mount（φ49） |
| Aperture | 3.8-16 |
| Working Distance | 497.85 |
| Filter Thread | M45×P0.5 |
| Distortion | 0.01% |
| Dimensions | φ55.7 |
| Weight | 334 |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether LS1626A fits, or recommend a better match.
