LS1615L-P01

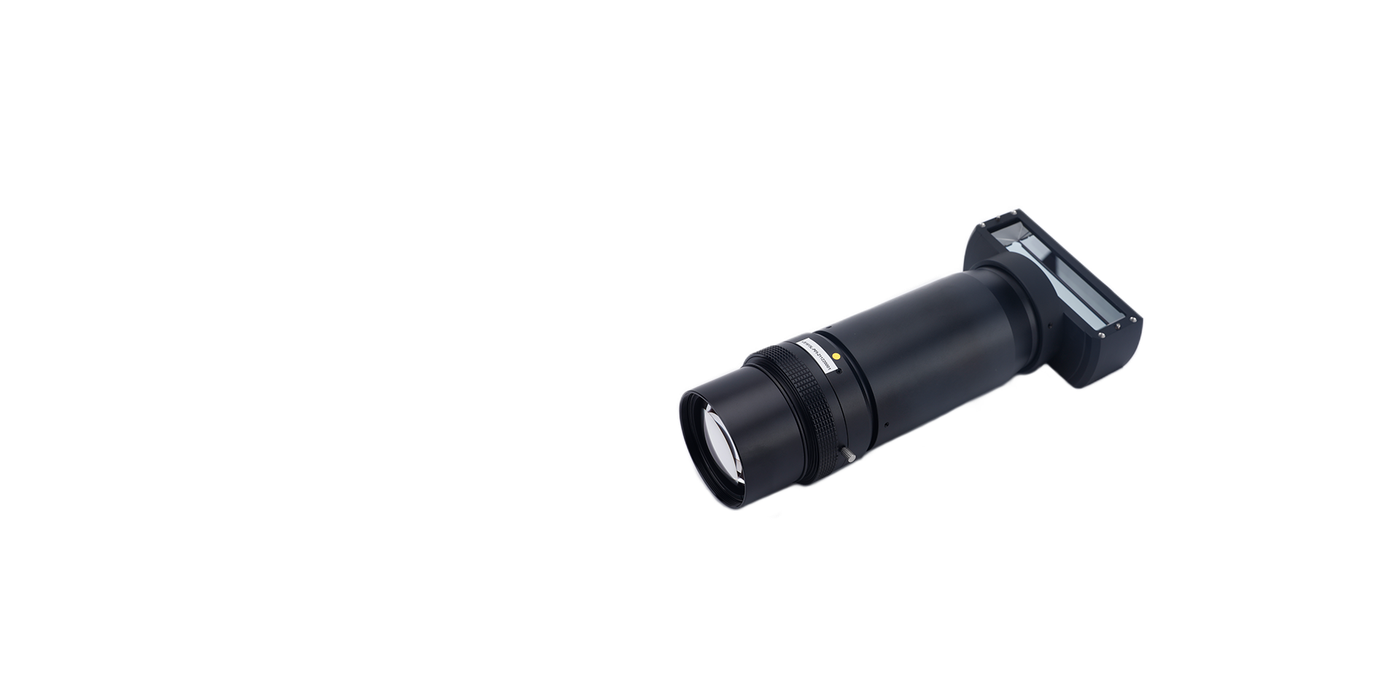

LS1615L-P01 145mm Line Scan Lens
Large image circle optics for 4K, 8K and 16K line scan cameras.
145 mmFocal Length
1.4-1.6Magnification
V-Mount（φ56）Mount
4.3-16Aperture
58.8Working Distance
0.001%Distortion
Dimensions
Mechanical drawing
(on request)
(on request)
Mechanical dimensions
Overall length, barrel diameter and flange distance. Ask us for the 2D drawing or a CAD model of LS1615L-P01.
- MountV-Mount（φ56）
Key Specifications
| Focal Length | 145 mm |
| Magnification | 1.4-1.6 |
| Mount | V-Mount（φ56） |
| Aperture | 4.3-16 |
| Working Distance | 58.8 |
| Distortion | 0.001% |
Applications
- Machine Vision
- Machine Vision Inspection
- Precision Measurement
- Electronics & Semiconductor
Downloads
- Datasheet (PDF)
- CAD model
- MTF data
- User manual
Documentation is sent by email or WhatsApp while the download centre is being prepared.
Related Products
Need help choosing a lens?
Tell us your sensor, working distance and application. We will confirm whether LS1615L-P01 fits, or recommend a better match.
